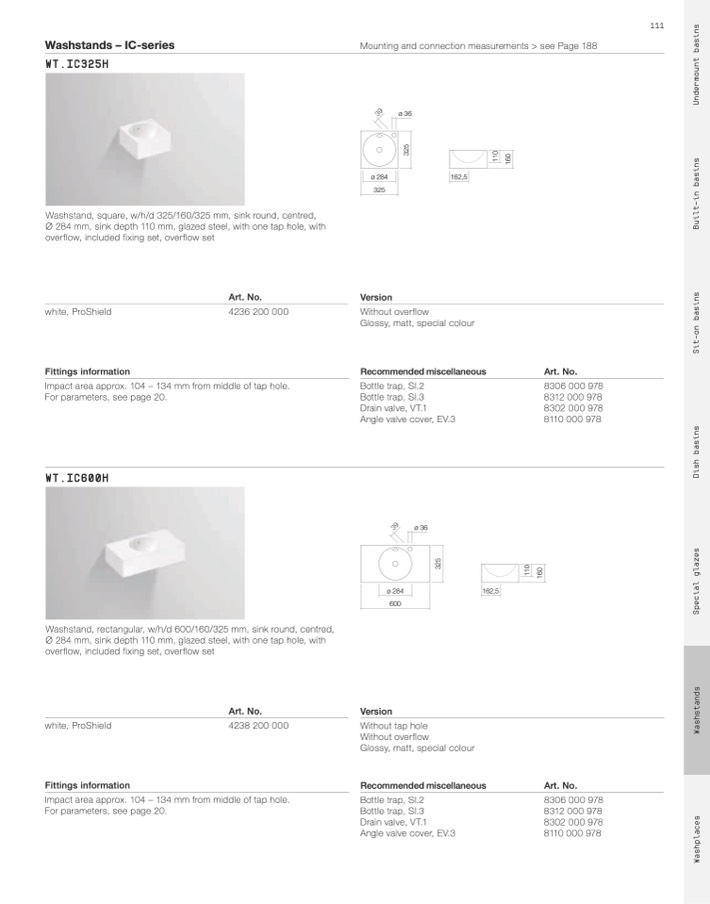

Washstands – IC-series

WT.IC325H

Mounting and connection measurements > see Page 188

111

ø 36

Washstand, square, w/h/d 325/160/325 mm, sink round, centred,

Ø 284 mm, sink depth 110 mm, glazed steel, with one tap hole, with

overflow, included fixing set, overflow set

Art. No.

white, ProShield

4236 200 000

Fittings information

Impact area approx. 104 – 134 mm from middle of tap hole.

For parameters, see page 20.

WT.IC600H

Version

ø 284

162,5

325

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

ø 36

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978

Washstand, rectangular, w/h/d 600/160/325 mm, sink round, centred,

Ø 284 mm, sink depth 110 mm, glazed steel, with one tap hole, with

overflow, included fixing set, overflow set

ø 284

162,5

600

white, ProShield

Fittings information

Art. No.

4238 200 000

Version

Without tap hole

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

Impact area approx. 104 – 134 mm from middle of tap hole.

For parameters, see page 20.

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978
