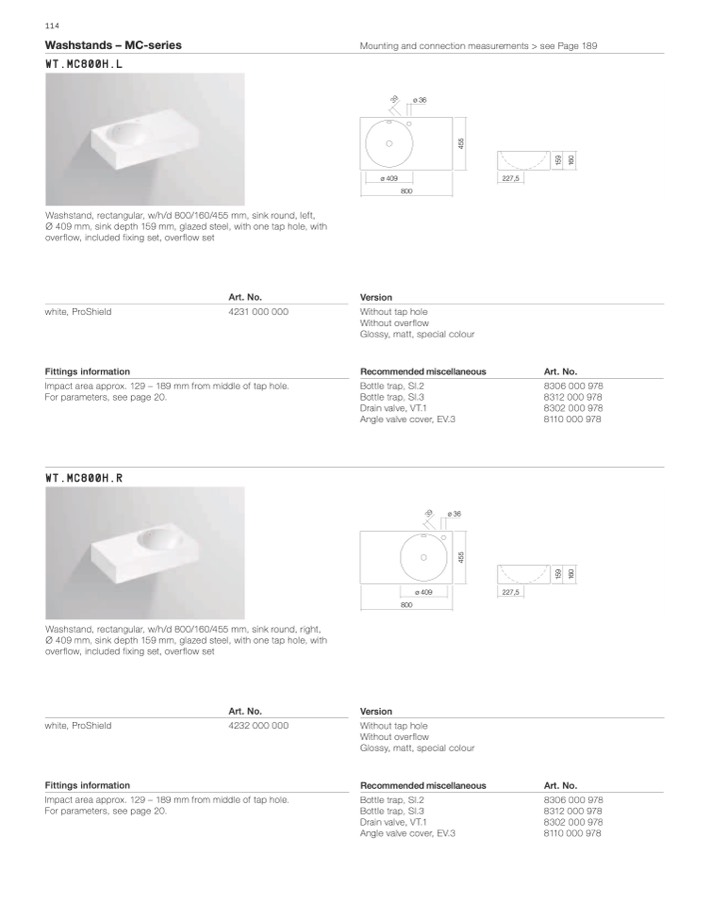

114

Washstands – MC-series

WT.MC800H.L

Washstand, rectangular, w/h/d 800/160/455 mm, sink round, left,

Ø 409 mm, sink depth 159 mm, glazed steel, with one tap hole, with

overflow, included fixing set, overflow set

Mounting and connection measurements > see Page 189

ø 409

800

227,5

ø 36

Art. No.

4231 000 000

Version

white, ProShield

Fittings information

Without tap hole

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

ø 36

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978

Impact area approx. 129 – 189 mm from middle of tap hole.

For parameters, see page 20.

WT.MC800H.R

Washstand, rectangular, w/h/d 800/160/455 mm, sink round, right,

Ø 409 mm, sink depth 159 mm, glazed steel, with one tap hole, with

overflow, included fixing set, overflow set

800

ø 409

227,5

white, ProShield

Fittings information

Art. No.

4232 000 000

Version

Without tap hole

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

Impact area approx. 129 – 189 mm from middle of tap hole.

For parameters, see page 20.

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978

3

9

1

5

9

1

6

0

1

5

9

1

6

0

4

5

5

4

5

5
