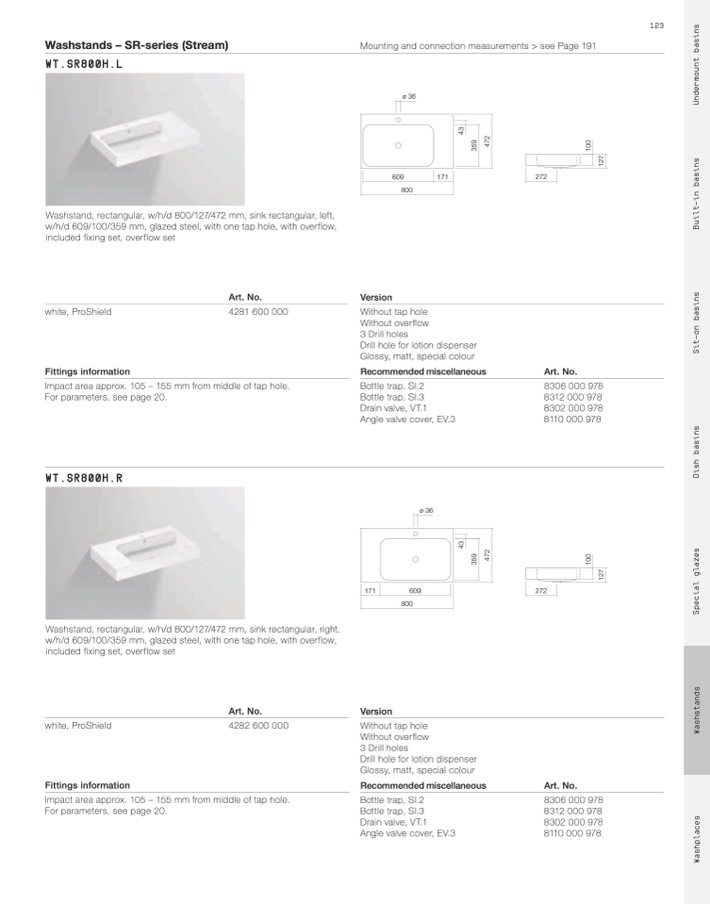

Washstands – SR-series (Stream)

WT.SR800H.L

Washstand, rectangular, w/h/d 800/127/472 mm, sink rectangular, left,

w/h/d 609/100/359 mm, glazed steel, with one tap hole, with overflow,

included fixing set, overflow set

Mounting and connection measurements > see Page 191

ø 36

123

Art. No.

4281 600 000

Version

609

272

800

171

white, ProShield

Fittings information

Without tap hole

Without overflow

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

ø 36

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978

Impact area approx. 105 – 155 mm from middle of tap hole.

For parameters, see page 20.

WT.SR800H.R

Washstand, rectangular, w/h/d 800/127/472 mm, sink rectangular, right,

w/h/d 609/100/359 mm, glazed steel, with one tap hole, with overflow,

included fixing set, overflow set

171

609

272

800

white, ProShield

Fittings information

Art. No.

4282 600 000

Version

Without tap hole

Without overflow

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

Impact area approx. 105 – 155 mm from middle of tap hole.

For parameters, see page 20.

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978
