126

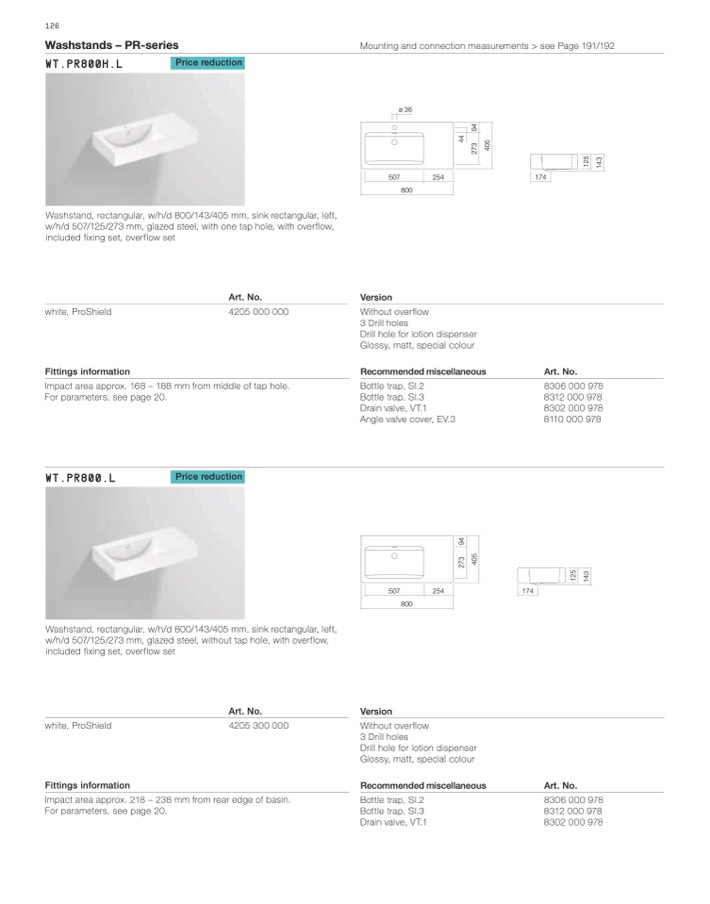

Washstands – PR-series

Mounting and connection measurements > see Page 191/192

WT.PR800H.L

Price reduction

ø 36

Washstand, rectangular, w/h/d 800/143/405 mm, sink rectangular, left,

w/h/d 507/125/273 mm, glazed steel, with one tap hole, with overflow,

included fixing set, overflow set

Art. No.

4205 000 000

Version

507

254

174

800

white, ProShield

Fittings information

Without overflow

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978

Impact area approx. 168 – 188 mm from middle of tap hole.

For parameters, see page 20.

WT.PR800.L

Price reduction

Washstand, rectangular, w/h/d 800/143/405 mm, sink rectangular, left,

w/h/d 507/125/273 mm, glazed steel, without tap hole, with overflow,

included fixing set, overflow set

507

254

174

800

white, ProShield

Fittings information

Art. No.

4205 300 000

Version

Without overflow

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Impact area approx. 218 – 238 mm from rear edge of basin.

For parameters, see page 20.

Art. No.

8306 000 978

8312 000 978

8302 000 978

1

2

5

1

4

3

1

2

5

1

4

3

2

7

3

4

0

5

9

4

4

4

2

7

3

9

4

4

0

5
