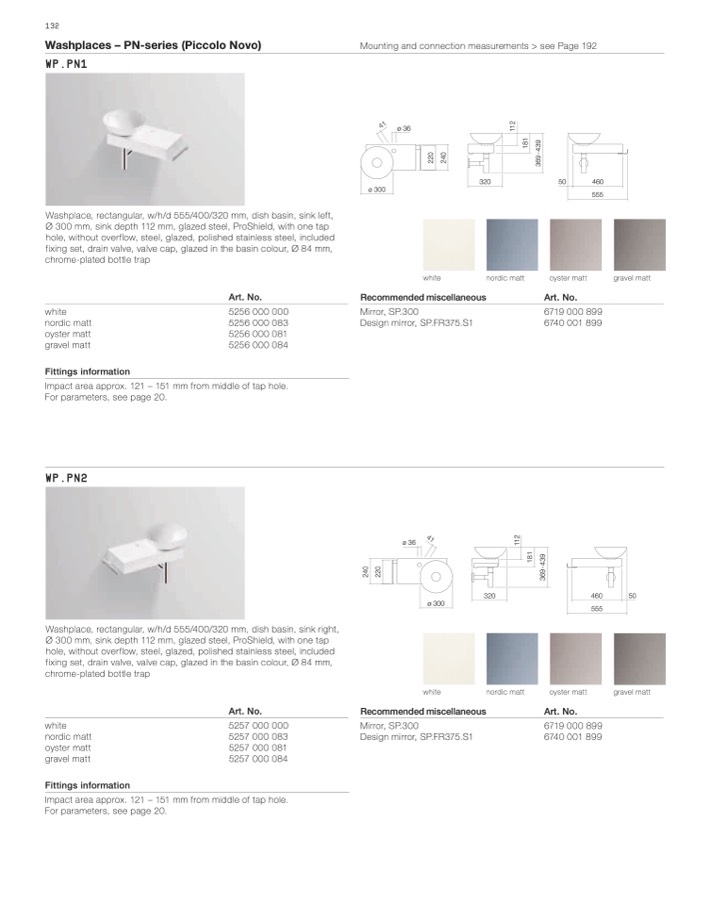

Washplaces – PN-series (Piccolo Novo)
WP.PN1
Washplace, rectangular, w/h/d 555/400/320 mm, dish basin, sink left,
Ø 300 mm, sink depth 112 mm, glazed steel, ProShield, with one tap
hole, without overflow, steel, glazed, polished stainless steel, included
fixing set, drain valve, valve cap, glazed in the basin colour, Ø 84 mm,
chrome-plated bottle trap
Mounting and connection measurements > see Page 192
ø 36
ø 300
50
oyster matt
Art. No.
6719 000 899
6740 001 899
320
460
555
white
nordic matt
oyster matt
gravel matt
Fittings information
Art. No.
5256 000 000
5256 000 083
5256 000 081
5256 000 084
Recommended miscellaneous
Mirror, SP.300
Design mirror, SP.FR375.S1
white
nordic matt
gravel matt
Impact area approx. 121 – 151 mm from middle of tap hole.
For parameters, see page 20.
WP.PN2
Washplace, rectangular, w/h/d 555/400/320 mm, dish basin, sink right,
Ø 300 mm, sink depth 112 mm, glazed steel, ProShield, with one tap
hole, without overflow, steel, glazed, polished stainless steel, included
fixing set, drain valve, valve cap, glazed in the basin colour, Ø 84 mm,
chrome-plated bottle trap
ø 36
ø 300
white
50
gravel matt
320
460
555
nordic matt
oyster matt
Art. No.
6719 000 899
6740 001 899
white
nordic matt
oyster matt
gravel matt
Fittings information
Art. No.
5257 000 000
5257 000 083
5257 000 081
5257 000 084
Recommended miscellaneous
Mirror, SP.300
Design mirror, SP.FR375.S1
Impact area approx. 121 – 151 mm from middle of tap hole.
For parameters, see page 20.
