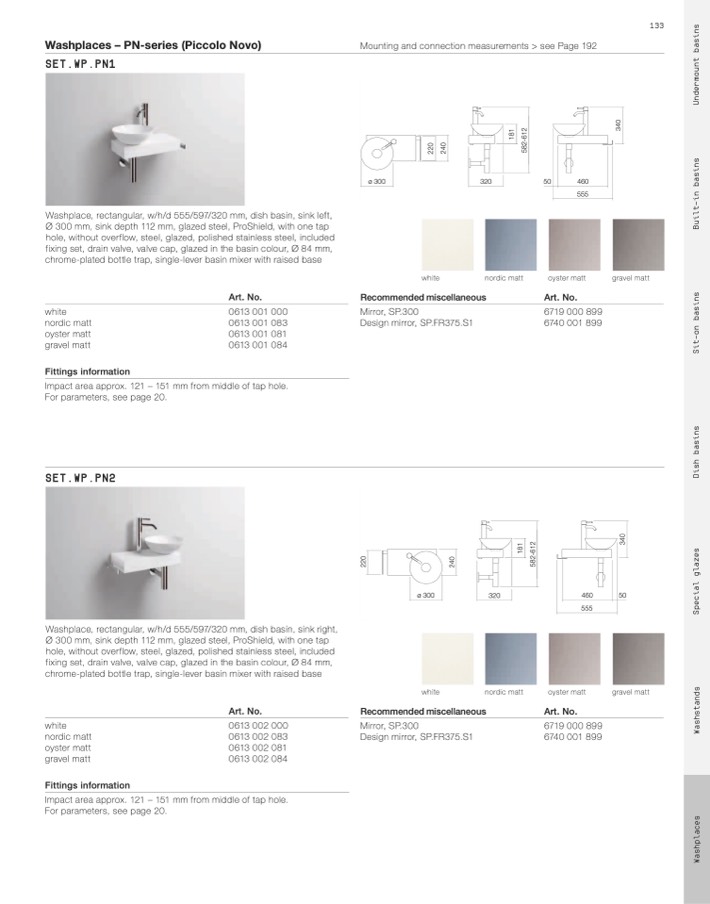

Washplaces – PN-series (Piccolo Novo)

SET.WP.PN1

Washplace, rectangular, w/h/d 555/597/320 mm, dish basin, sink left,

Ø 300 mm, sink depth 112 mm, glazed steel, ProShield, with one tap

hole, without overflow, steel, glazed, polished stainless steel, included

fixing set, drain valve, valve cap, glazed in the basin colour, Ø 84 mm,

chrome-plated bottle trap, single-lever basin mixer with raised base

Mounting and connection measurements > see Page 192

133

ø 300

50

oyster matt

Art. No.

6719 000 899

6740 001 899

320

460

555

white

nordic matt

oyster matt

gravel matt

Fittings information

Mirror, SP.300

Design mirror, SP.FR375.S1

Art. No.

0613 001 000

0613 001 083

0613 001 081

0613 001 084

Recommended miscellaneous

white

nordic matt

gravel matt

Impact area approx. 121 – 151 mm from middle of tap hole.

For parameters, see page 20.

SET.WP.PN2

Washplace, rectangular, w/h/d 555/597/320 mm, dish basin, sink right,

Ø 300 mm, sink depth 112 mm, glazed steel, ProShield, with one tap

hole, without overflow, steel, glazed, polished stainless steel, included

fixing set, drain valve, valve cap, glazed in the basin colour, Ø 84 mm,

chrome-plated bottle trap, single-lever basin mixer with raised base

ø 300

320

460

50

555

white

nordic matt

oyster matt

gravel matt

Fittings information

Art. No.

0613 002 000

0613 002 083

0613 002 081

0613 002 084

Recommended miscellaneous

Mirror, SP.300

Design mirror, SP.FR375.S1

white

nordic matt

oyster matt

Art. No.

6719 000 899

6740 001 899

gravel matt

Impact area approx. 121 – 151 mm from middle of tap hole.

For parameters, see page 20.
