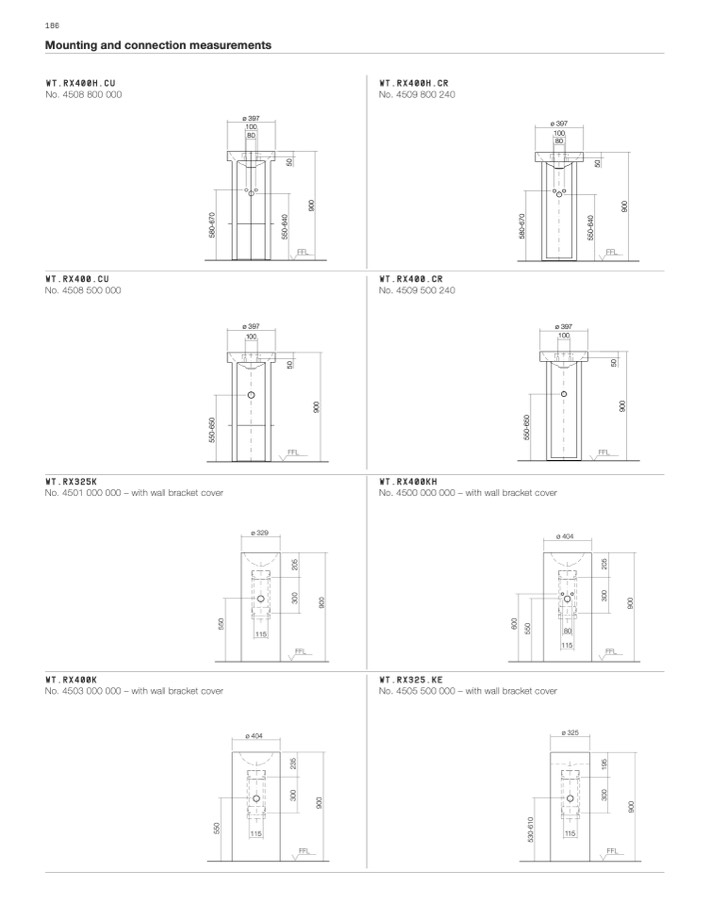

Mounting and connection measurements
WT.RX400H.CU
No. 4508 800 000
WT.RX400H.CR
No. 4509 800 240
ø 397
100
80
ø 397
100
80
FFL
FFL
WT.RX400.CU
No. 4508 500 000
WT.RX400.CR
No. 4509 500 240
ø 397
ø 397
100
100
FFL
FFL
WT.RX325K
No. 4501 000 000 – with wall bracket cover
WT.RX400KH
ø 329
No. 4500 000 000 – with wall bracket cover
ø 404
115
80
115
FFL
FFL
WT.RX400K
No. 4503 000 000 – with wall bracket cover
WT.RX325.KE
No. 4505 500 000 – with wall bracket cover
ø 404
ø 325
115
FFL
115
FFL
