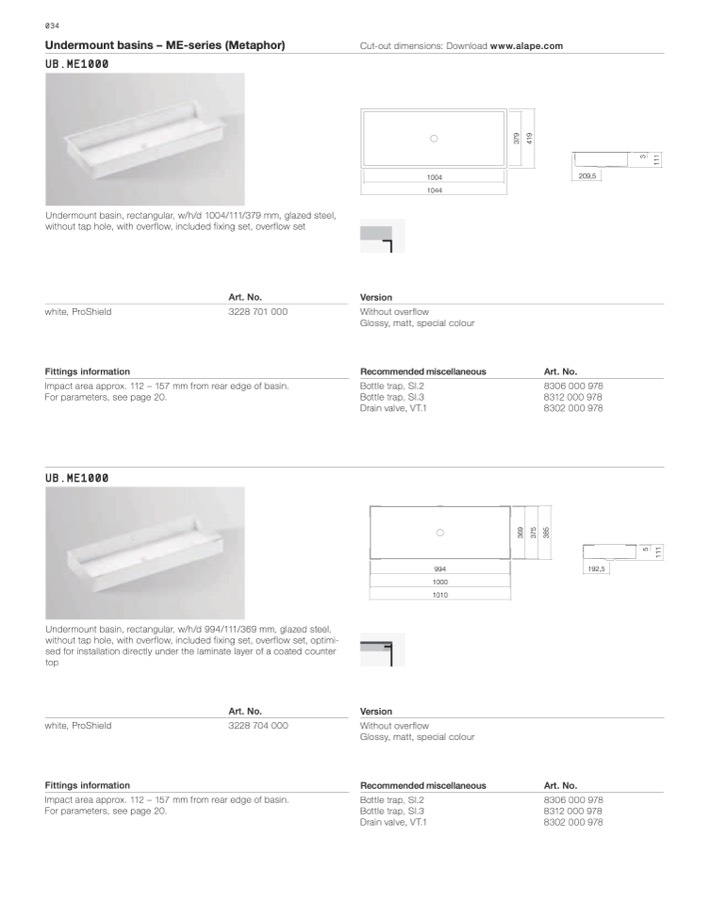

Undermount basins – ME-series (Metaphor)

UB.ME1000

Cut-out dimensions: Download www.alape.com

Undermount basin, rectangular, w/h/d 1004/111/379 mm, glazed steel,

without tap hole, with overflow, included fixing set, overflow set

Art. No.

white, ProShield

3228 701 000

Fittings information

Impact area approx. 112 – 157 mm from rear edge of basin.

For parameters, see page 20.

UB.ME1000

Version

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Art. No.

8306 000 978

8312 000 978

8302 000 978

209,5

Undermount basin, rectangular, w/h/d 994/111/369 mm, glazed steel,

without tap hole, with overflow, included fixing set, overflow set, optimi-

sed for installation directly under the laminate layer of a coated counter

top

Art. No.

white, ProShield

3228 704 000

Fittings information

Impact area approx. 112 – 157 mm from rear edge of basin.

For parameters, see page 20.

Version

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Art. No.

8306 000 978

8312 000 978

8302 000 978
