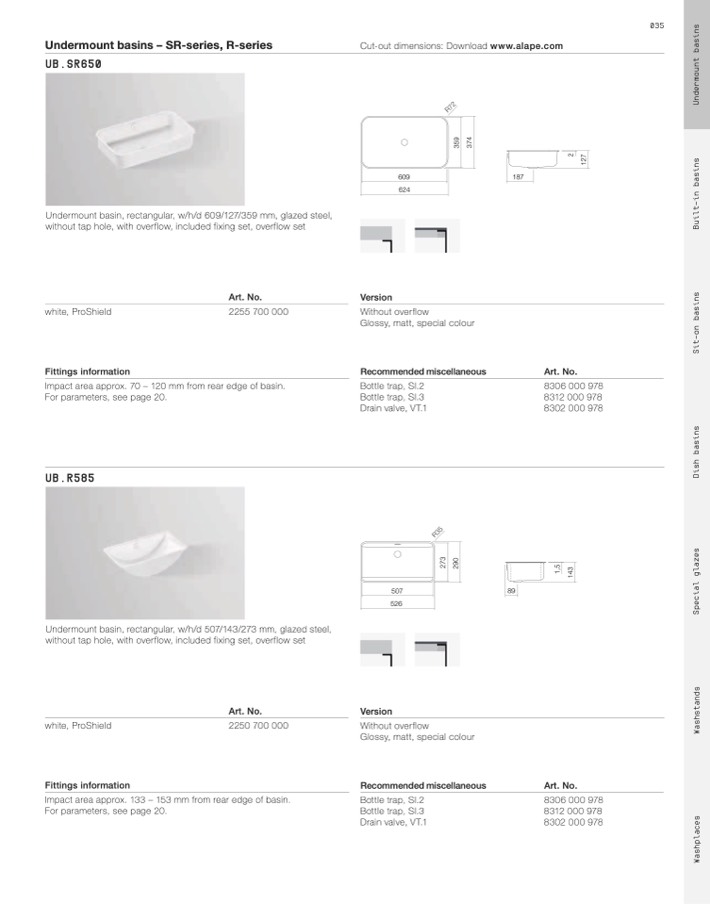

Undermount basins – SR-series, R-series

UB.SR650

Cut-out dimensions: Download www.alape.com

035

Undermount basin, rectangular, w/h/d 609/127/359 mm, glazed steel,

without tap hole, with overflow, included fixing set, overflow set

Art. No.

white, ProShield

2255 700 000

Fittings information

Impact area approx. 70 – 120 mm from rear edge of basin.

For parameters, see page 20.

UB.R585

609

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

187

624

Version

Art. No.

8306 000 978

8312 000 978

8302 000 978

Undermount basin, rectangular, w/h/d 507/143/273 mm, glazed steel,

without tap hole, with overflow, included fixing set, overflow set

Art. No.

white, ProShield

2250 700 000

Fittings information

Impact area approx. 133 – 153 mm from rear edge of basin.

For parameters, see page 20.

Version

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Art. No.

8306 000 978

8312 000 978

8302 000 978

507

89

526
