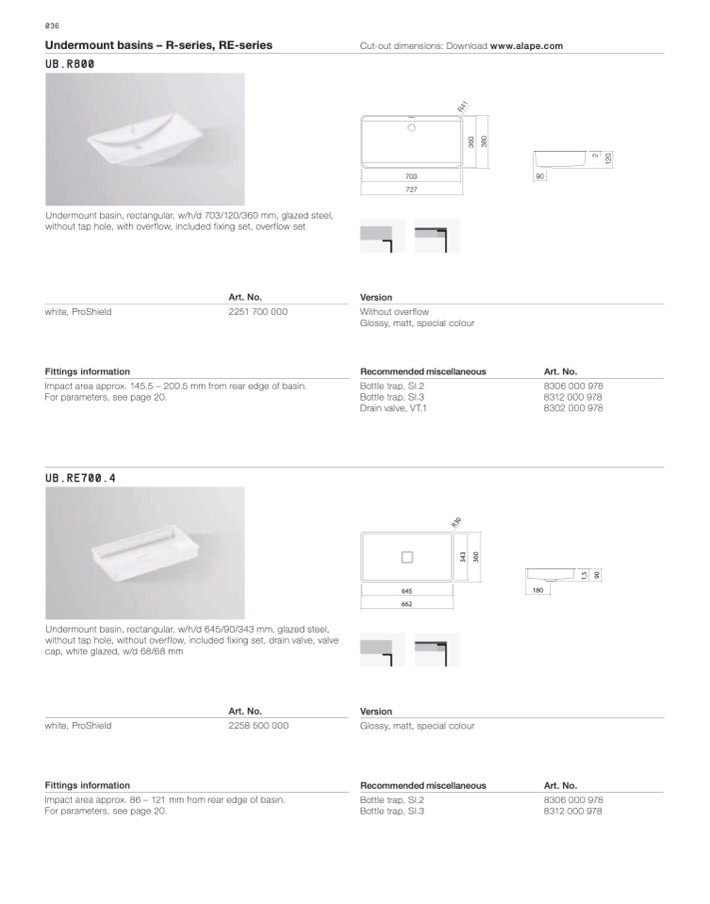

036

Undermount basins – R-series, RE-series

UB.R800

Cut-out dimensions: Download www.alape.com

Undermount basin, rectangular, w/h/d 703/120/360 mm, glazed steel,

without tap hole, with overflow, included fixing set, overflow set

Art. No.

white, ProShield

2251 700 000

Fittings information

Impact area approx. 145.5 – 200.5 mm from rear edge of basin.

For parameters, see page 20.

UB.RE700.4

Version

Without overflow

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Art. No.

8306 000 978

8312 000 978

8302 000 978

703

90

727

Undermount basin, rectangular, w/h/d 645/90/343 mm, glazed steel,

without tap hole, without overflow, included fixing set, drain valve, valve

cap, white glazed, w/d 68/68 mm

Art. No.

white, ProShield

2258 500 000

Fittings information

Impact area approx. 86 – 121 mm from rear edge of basin.

For parameters, see page 20.

Version

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Art. No.

8306 000 978

8312 000 978

645

180

662

R

3

0

1

,

5

9

0

2

1

2

0

3

4

3

3

6

0

3

6

0

3

8

0
