040

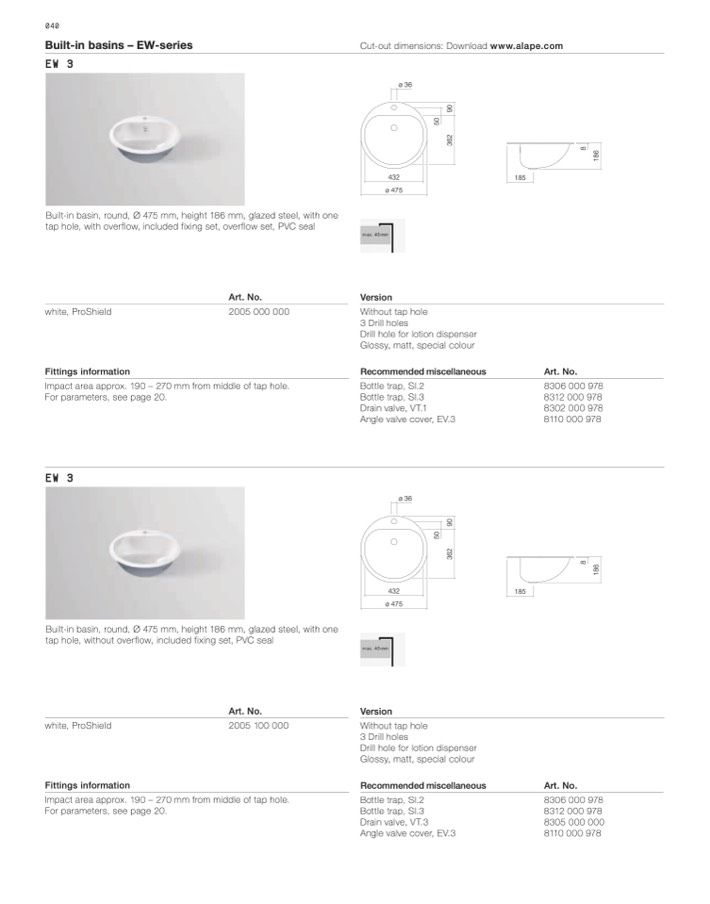

Built-in basins – EW-series

EW 3

Built-in basin, round, Ø 475 mm, height 186 mm, glazed steel, with one

tap hole, with overflow, included fixing set, overflow set, PVC seal

Cut-out dimensions: Download www.alape.com

ø 36

185

ø 475

white, ProShield

Fittings information

Art. No.

2005 000 000

432

Version

Without tap hole

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

ø 36

432

Version

Without tap hole

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.3

Angle valve cover, EV.3

Impact area approx. 190 – 270 mm from middle of tap hole.

For parameters, see page 20.

EW 3

Built-in basin, round, Ø 475 mm, height 186 mm, glazed steel, with one

tap hole, without overflow, included fixing set, PVC seal

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978

185

ø 475

white, ProShield

Fittings information

Art. No.

2005 100 000

Impact area approx. 190 – 270 mm from middle of tap hole.

For parameters, see page 20.

Art. No.

8306 000 978

8312 000 978

8305 000 000

8110 000 978

3

6

2

9

0

3

6

2

9

0

5

0

5

0

8

8

1

8

6

1

8

6
