056

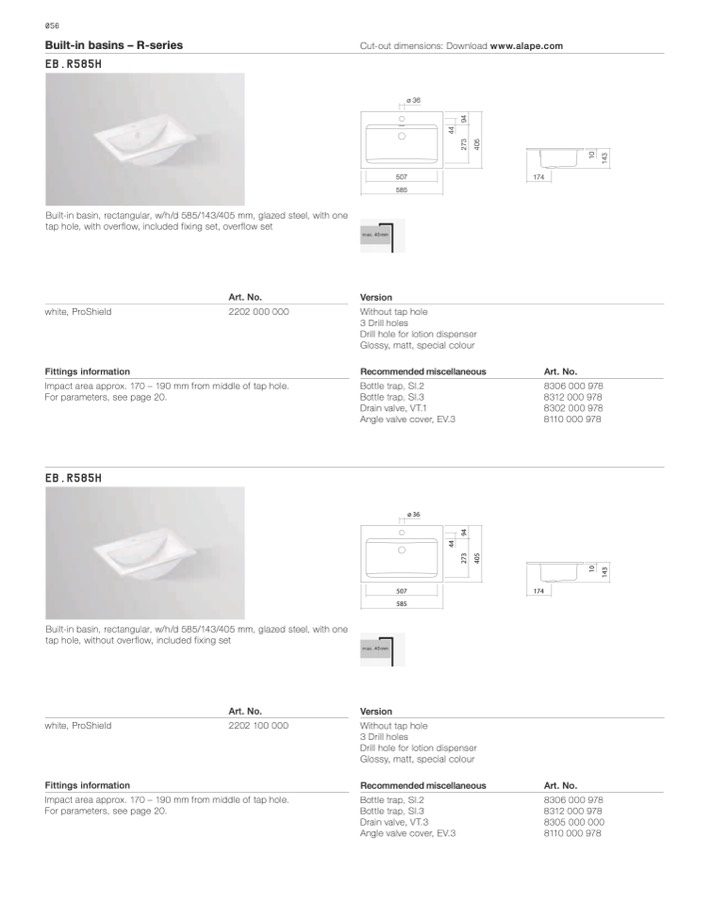

Built-in basins – R-series

EB.R585H

Built-in basin, rectangular, w/h/d 585/143/405 mm, glazed steel, with one

tap hole, with overflow, included fixing set, overflow set

Cut-out dimensions: Download www.alape.com

ø 36

507

174

585

Art. No.

2202 000 000

Version

white, ProShield

Fittings information

Without tap hole

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

ø 36

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978

Impact area approx. 170 – 190 mm from middle of tap hole.

For parameters, see page 20.

EB.R585H

Built-in basin, rectangular, w/h/d 585/143/405 mm, glazed steel, with one

tap hole, without overflow, included fixing set

507

174

585

white, ProShield

Fittings information

Art. No.

2202 100 000

Version

Without tap hole

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.3

Angle valve cover, EV.3

Impact area approx. 170 – 190 mm from middle of tap hole.

For parameters, see page 20.

Art. No.

8306 000 978

8312 000 978

8305 000 000

8110 000 978

1

0

1

4

3

1

0

1

4

3

2

7

3

4

0

5

9

4

2

7

3

4

0

5

9

4

4

4

4

4
