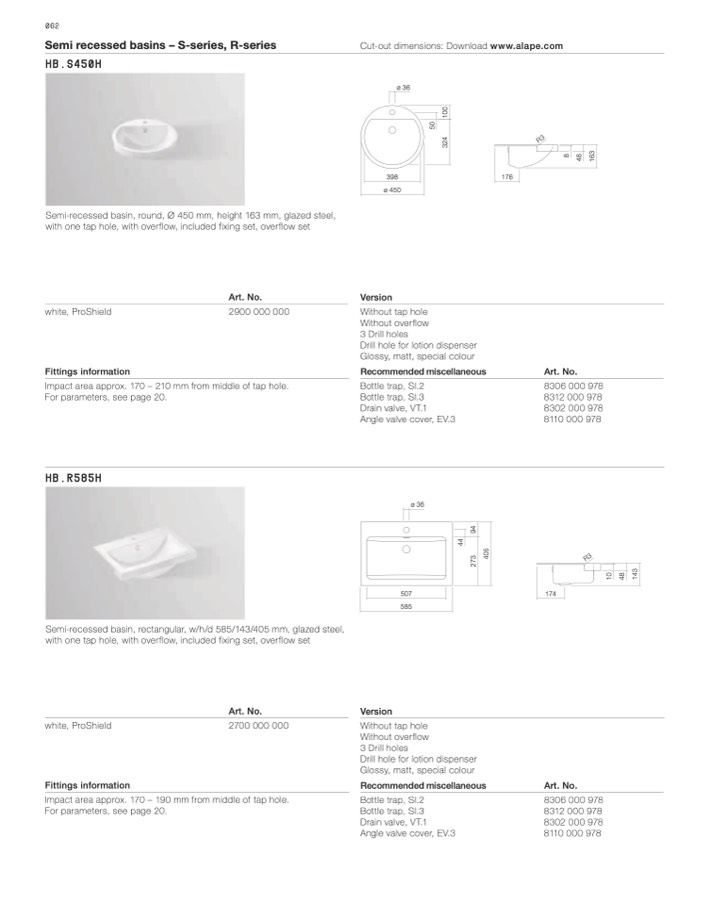

Semi recessed basins – S-series, R-series

HB.S450H

Semi-recessed basin, round, Ø 450 mm, height 163 mm, glazed steel,

with one tap hole, with overflow, included fixing set, overflow set

Cut-out dimensions: Download www.alape.com

ø 36

176

ø 450

white, ProShield

Fittings information

Art. No.

2900 000 000

398

Version

Without tap hole

Without overflow

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

ø 36

Impact area approx. 170 – 210 mm from middle of tap hole.

For parameters, see page 20.

HB.R585H

Semi-recessed basin, rectangular, w/h/d 585/143/405 mm, glazed steel,

with one tap hole, with overflow, included fixing set, overflow set

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978

507

585

174

white, ProShield

Fittings information

Art. No.

2700 000 000

Version

Without tap hole

Without overflow

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Drain valve, VT.1

Angle valve cover, EV.3

Impact area approx. 170 – 190 mm from middle of tap hole.

For parameters, see page 20.

Art. No.

8306 000 978

8312 000 978

8302 000 978

8110 000 978
