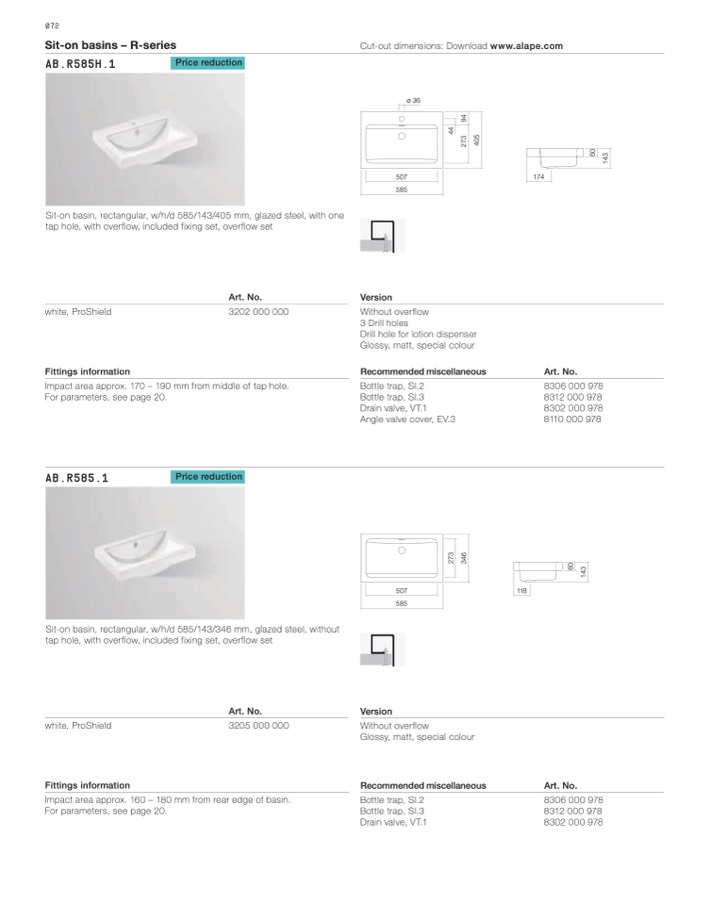

072
Sit-on basins – R-series
Cut-out dimensions: Download www.alape.com
AB.R585H.1
Price reduction
ø 36
Sit-on basin, rectangular, w/h/d 585/143/405 mm, glazed steel, with one
tap hole, with overflow, included fixing set, overflow set
507
174
585
Art. No.
3202 000 000
Version
white, ProShield
Fittings information
Without overflow
3 Drill holes
Drill hole for lotion dispenser
Glossy, matt, special colour
Recommended miscellaneous
Bottle trap, SI.2
Bottle trap, SI.3
Drain valve, VT.1
Angle valve cover, EV.3
Art. No.
8306 000 978
8312 000 978
8302 000 978
8110 000 978
Impact area approx. 170 – 190 mm from middle of tap hole.
For parameters, see page 20.
AB.R585.1
Price reduction
Sit-on basin, rectangular, w/h/d 585/143/346 mm, glazed steel, without
tap hole, with overflow, included fixing set, overflow set
Art. No.
white, ProShield
3205 000 000
Fittings information
Impact area approx. 160 – 180 mm from rear edge of basin.
For parameters, see page 20.
Version
Without overflow
Glossy, matt, special colour
Recommended miscellaneous
Bottle trap, SI.2
Bottle trap, SI.3
Drain valve, VT.1
Art. No.
8306 000 978
8312 000 978
8302 000 978
507
118
585
6
0
1
4
3
2
7
3
3
4
6
4
4
6
0
1
4
3
2
7
3
4
0
5
9
4
