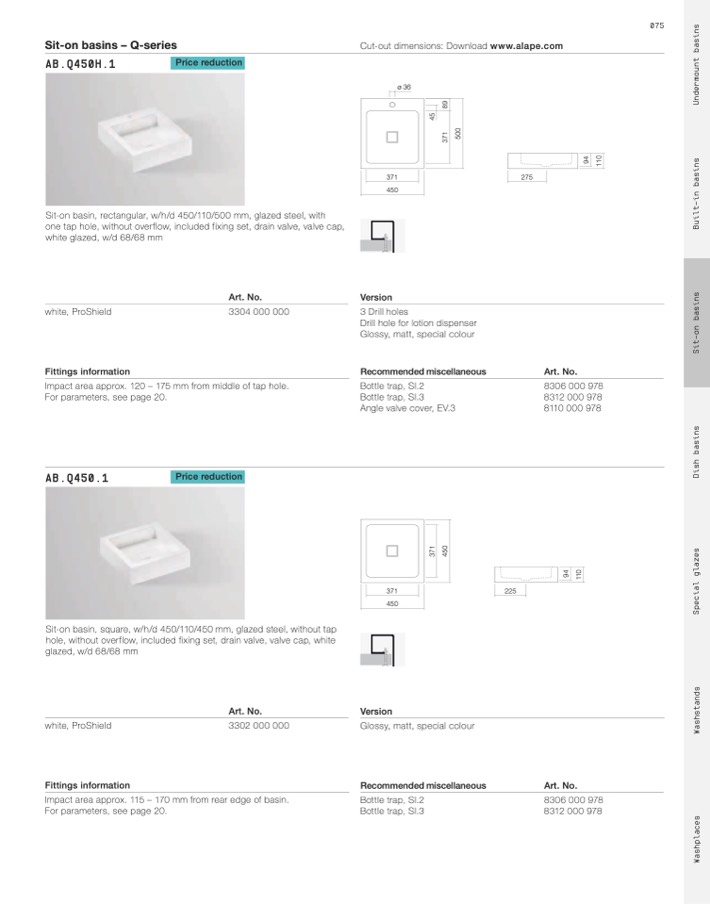

Sit-on basins – Q-series

Cut-out dimensions: Download www.alape.com

ø 36

075

AB.Q450H.1

Price reduction

Sit-on basin, rectangular, w/h/d 450/110/500 mm, glazed steel, with

one tap hole, without overflow, included fixing set, drain valve, valve cap,

white glazed, w/d 68/68 mm

371

275

450

white, ProShield

Fittings information

Art. No.

3304 000 000

Version

3 Drill holes

Drill hole for lotion dispenser

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Angle valve cover, EV.3

Impact area approx. 120 – 175 mm from middle of tap hole.

For parameters, see page 20.

Art. No.

8306 000 978

8312 000 978

8110 000 978

AB.Q450.1

Price reduction

Sit-on basin, square, w/h/d 450/110/450 mm, glazed steel, without tap

hole, without overflow, included fixing set, drain valve, valve cap, white

glazed, w/d 68/68 mm

Art. No.

white, ProShield

3302 000 000

Fittings information

Impact area approx. 115 – 170 mm from rear edge of basin.

For parameters, see page 20.

Version

Glossy, matt, special colour

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Art. No.

8306 000 978

8312 000 978

371

450

225
