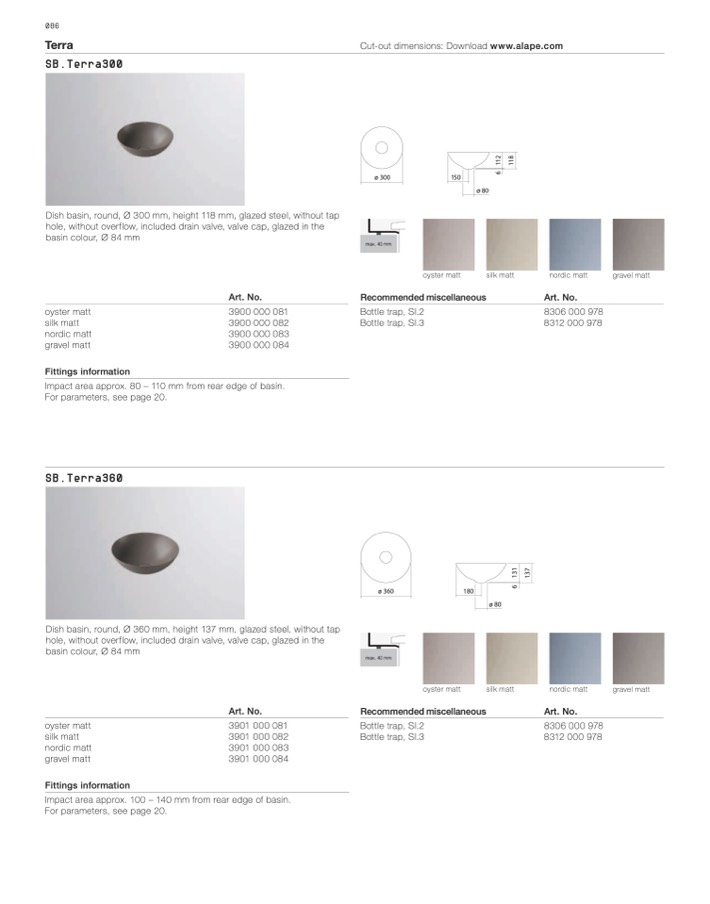

086

Terra

SB.Terra300

Dish basin, round, Ø 300 mm, height 118 mm, glazed steel, without tap

hole, without overflow, included drain valve, valve cap, glazed in the

basin colour, Ø 84 mm

Cut-out dimensions: Download www.alape.com

ø 300

150

ø 80

oyster matt

silk matt

nordic matt

Art. No.

8306 000 978

8312 000 978

gravel matt

oyster matt

silk matt

nordic matt

gravel matt

Fittings information

Art. No.

3900 000 081

3900 000 082

3900 000 083

3900 000 084

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Impact area approx. 80 – 110 mm from rear edge of basin.

For parameters, see page 20.

SB.Terra360

Dish basin, round, Ø 360 mm, height 137 mm, glazed steel, without tap

hole, without overflow, included drain valve, valve cap, glazed in the

basin colour, Ø 84 mm

ø 360

oyster matt

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

ø 80

silk matt

180

oyster matt

silk matt

nordic matt

gravel matt

Fittings information

Art. No.

3901 000 081

3901 000 082

3901 000 083

3901 000 084

nordic matt

Art. No.

8306 000 978

8312 000 978

gravel matt

Impact area approx. 100 – 140 mm from rear edge of basin.

For parameters, see page 20.
