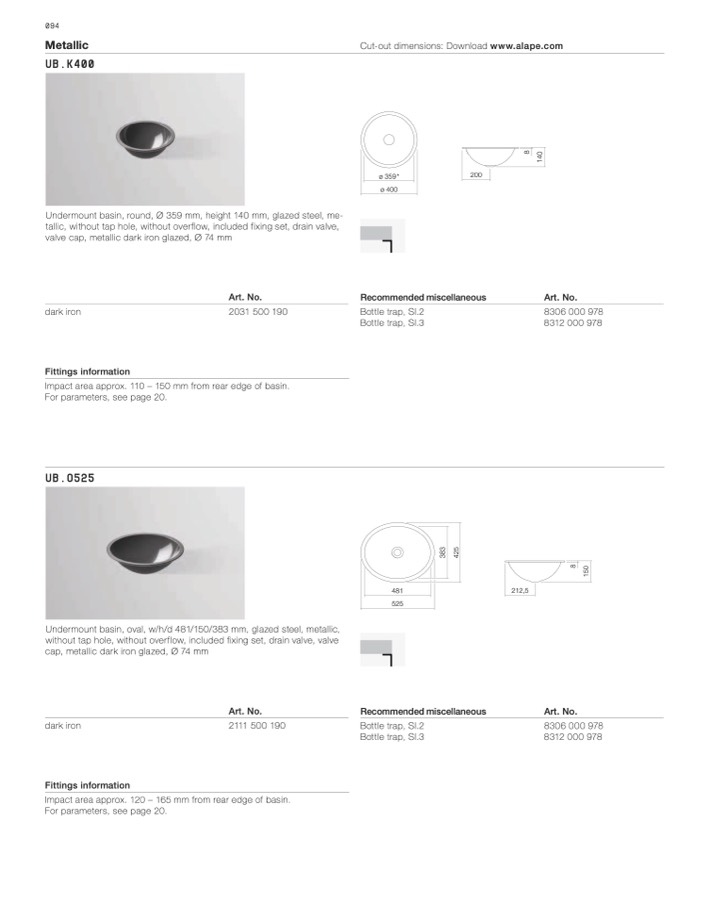

094

Metallic

UB.K400

Cut-out dimensions: Download www.alape.com

Undermount basin, round, Ø 359 mm, height 140 mm, glazed steel, me-

tallic, without tap hole, without overflow, included fixing set, drain valve,

valve cap, metallic dark iron glazed, Ø 74 mm

Art. No.

dark iron

2031 500 190

Fittings information

Impact area approx. 110 – 150 mm from rear edge of basin.

For parameters, see page 20.

UB.O525

ø 359*

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Art. No.

8306 000 978

8312 000 978

200

ø 400

Undermount basin, oval, w/h/d 481/150/383 mm, glazed steel, metallic,

without tap hole, without overflow, included fixing set, drain valve, valve

cap, metallic dark iron glazed, Ø 74 mm

Art. No.

dark iron

2111 500 190

Fittings information

Impact area approx. 120 – 165 mm from rear edge of basin.

For parameters, see page 20.

481

Recommended miscellaneous

Bottle trap, SI.2

Bottle trap, SI.3

Art. No.

8306 000 978

8312 000 978

212,5

525

8

1

5

0

3

8

3

4

2

5

8

1

4

0
