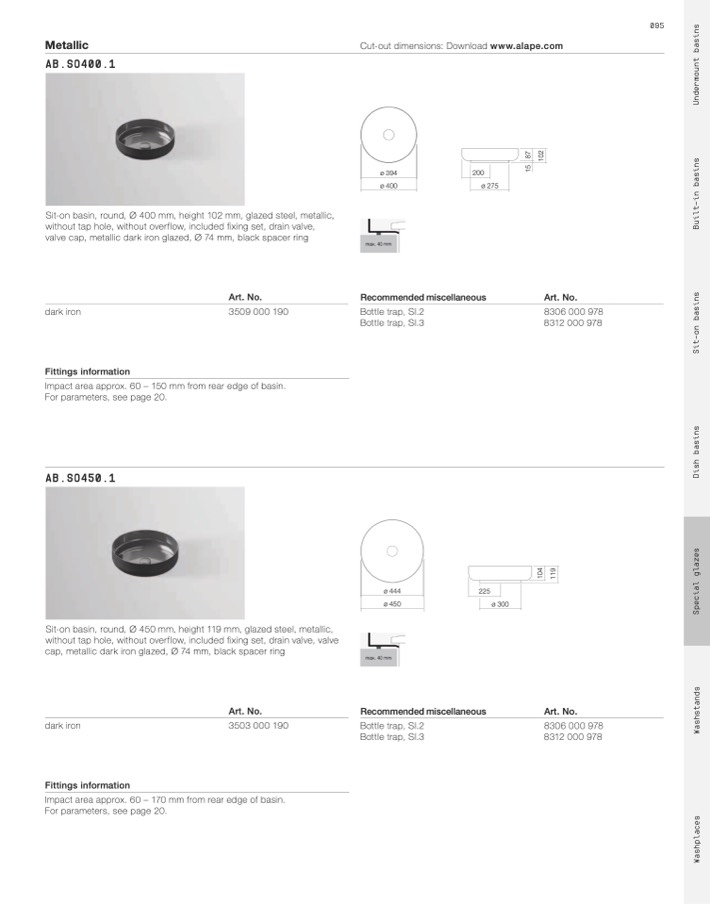

Metallic
AB.SO400.1
Cut-out dimensions: Download www.alape.com
095
200
Sit-on basin, round, Ø 400 mm, height 102 mm, glazed steel, metallic,
without tap hole, without overflow, included fixing set, drain valve,
valve cap, metallic dark iron glazed, Ø 74 mm, black spacer ring
Art. No.
dark iron
3509 000 190
Fittings information
Impact area approx. 60 – 150 mm from rear edge of basin.
For parameters, see page 20.
AB.SO450.1
ø 394
Recommended miscellaneous
Bottle trap, SI.2
Bottle trap, SI.3
Art. No.
8306 000 978
8312 000 978
ø 400
ø 275
225
Sit-on basin, round, Ø 450 mm, height 119 mm, glazed steel, metallic,
without tap hole, without overflow, included fixing set, drain valve, valve
cap, metallic dark iron glazed, Ø 74 mm, black spacer ring
Art. No.
dark iron
3503 000 190
Fittings information
Impact area approx. 60 – 170 mm from rear edge of basin.
For parameters, see page 20.
ø 444
Recommended miscellaneous
Bottle trap, SI.2
Bottle trap, SI.3
Art. No.
8306 000 978
8312 000 978
ø 450
ø 300
