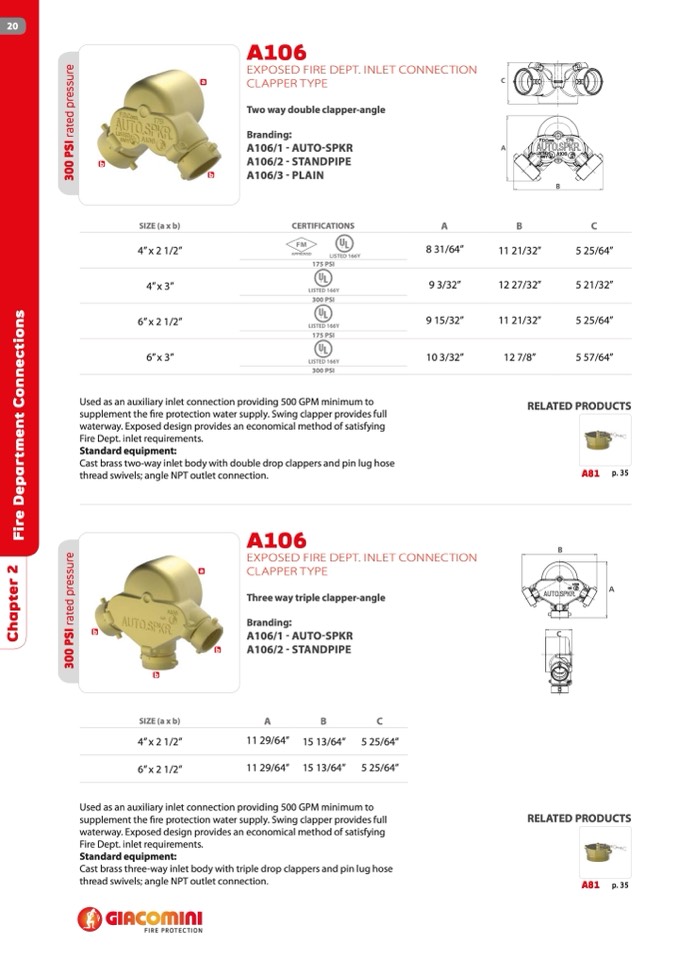

Two way double clapper-angle
Branding:
A106/1 - AUTO-SPKR
A106/2 - STANDPIPE
A106/3 - PLAIN
CERTIFICATIONS
LISTED 166Y
175 PSI
LISTED 166Y
300 PSI
LISTED 166Y
175 PSI
LISTED 166Y
300 PSI
SIZE (a x b)
4” x 2 1/2”
4” x 3”
6” x 2 1/2”
6” x 3”
A
8 31/64”
9 3/32”
9 15/32”
10 3/32”
B
C
5 25/64”
5 21/32”
5 25/64”
5 57/64”
a
A106
EXPOSED FIRE DEPT. INLET CONNECTION
CLAPPER TYPE
C
A
11 21/32”
12 27/32”
11 21/32”
12 7/8”
b
Used as an auxiliary inlet connection providing 500 GPM minimum to
supplement the fire protection water supply. Swing clapper provides full
waterway. Exposed design provides an economical method of satisfying
Fire Dept. inlet requirements.
Standard equipment:
Cast brass two-way inlet body with double drop clappers and pin lug hose
thread swivels; angle NPT outlet connection.
RELATED PRODUCTS
b
Branding:
A106/1 - AUTO-SPKR
A106/2 - STANDPIPE
b
SIZE (a x b)
4” x 2 1/2”
6” x 2 1/2”
A
11 29/64”
11 29/64”
B
15 13/64”
15 13/64”
C
5 25/64”
5 25/64”
a
EXPOSED FIRE DEPT. INLET CONNECTION
CLAPPER TYPE
Three way triple clapper-angle
b
Used as an auxiliary inlet connection providing 500 GPM minimum to
supplement the fire protection water supply. Swing clapper provides full
waterway. Exposed design provides an economical method of satisfying
Fire Dept. inlet requirements.
Standard equipment:
Cast brass three-way inlet body with triple drop clappers and pin lug hose
thread swivels; angle NPT outlet connection.
RELATED PRODUCTS
A81 p. 35
A106
B
C
B
A81
p. 35
A
C
