26

b

b

a

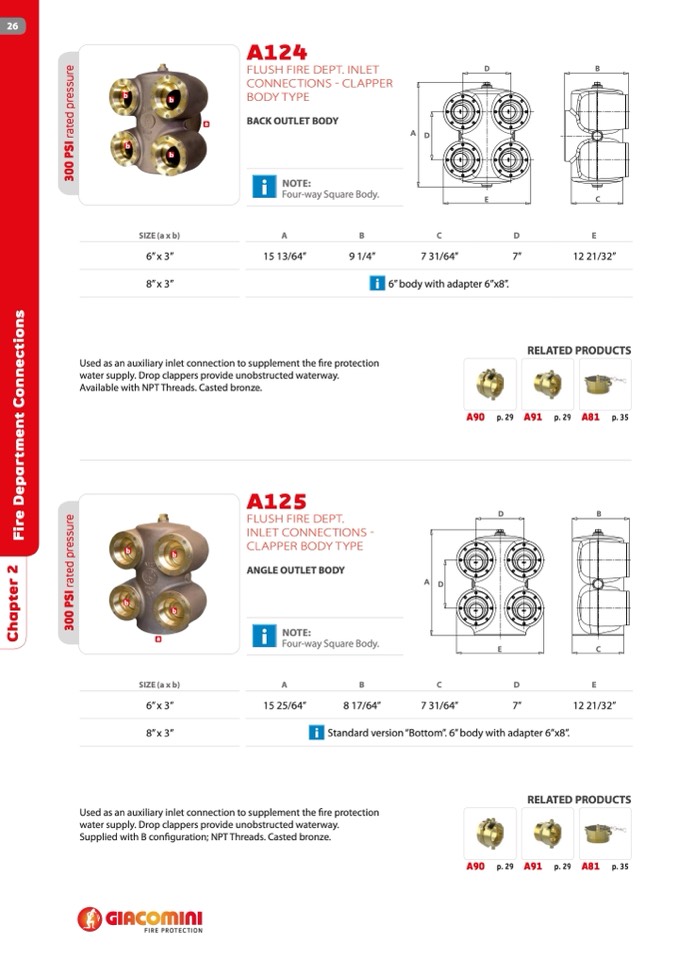

A124

FLUSH FIRE DEPT. INLET

CONNECTIONS - CLAPPER

BODY TYPE

BACK OUTLET BODY

NOTE:

Four-way Square Body.

D

B

E

C

b

b

SIZE (a x b)

A

B

C

D

E

6” x 3”

15 13/64”

9 1/4”

8” x 3”

Used as an auxiliary inlet connection to supplement the fire protection

water supply. Drop clappers provide unobstructed waterway.

Available with NPT Threads. Casted bronze.

7 31/64”

6” body with adapter 6”x8”.

b

b

b

a

A125

FLUSH FIRE DEPT.

INLET CONNECTIONS -

CLAPPER BODY TYPE

ANGLE OUTLET BODY

NOTE:

Four-way Square Body.

D

B

E

C

b

SIZE (a x b)

A

B

C

D

E

6” x 3”

15 25/64”

8 17/64”

7 31/64”

7”

12 21/32”

8” x 3”

Standard version “Bottom”. 6” body with adapter 6”x8”.

Used as an auxiliary inlet connection to supplement the fire protection

water supply. Drop clappers provide unobstructed waterway.

Supplied with B configuration; NPT Threads. Casted bronze.

RELATED PRODUCTS

A90 p. 29 A91 p. 29 A81 p. 35

A

D

A

D

7”

12 21/32”

RELATED PRODUCTS

A90 p. 29 A91 p. 29 A81 p. 35
