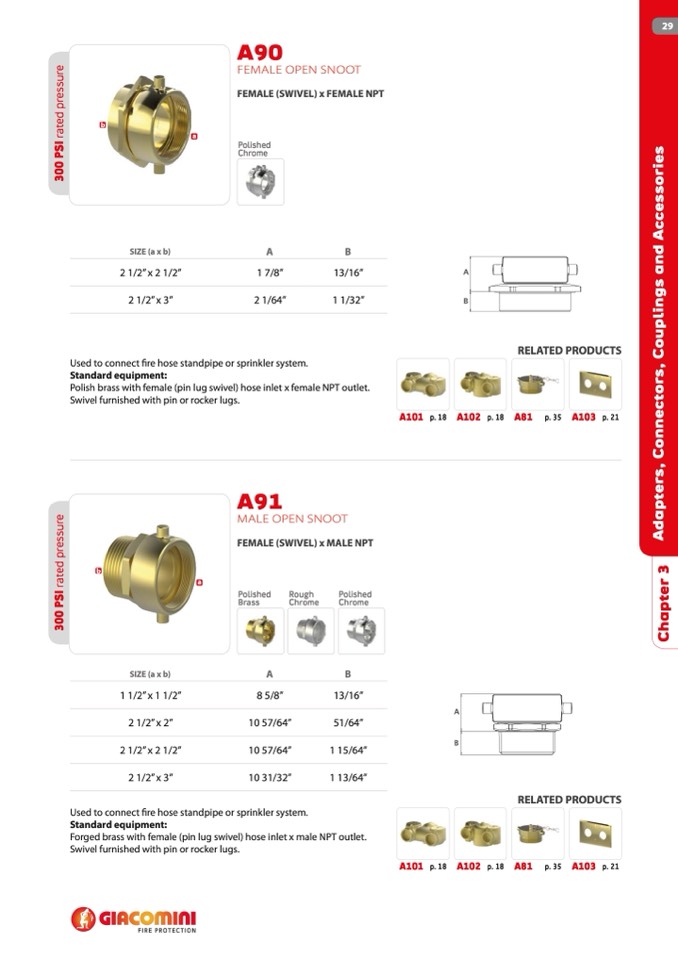

A90

FEMALE OPEN SNOOT

FEMALE (SWIVEL) x FEMALE NPT

29

b

SIZE (a x b)

2 1/2” x 2 1/2”

2 1/2”x 3”

B

13/16”

1 1/32”

A

B

A102 p. 18

a

Polished

Chrome

A

1 7/8”

2 1/64”

Used to connect fire hose standpipe or sprinkler system.

Standard equipment:

RELATED PRODUCTS

Polish brass with female (pin lug swivel) hose inlet x female NPT outlet.

Swivel furnished with pin or rocker lugs.

A91

MALE OPEN SNOOT

FEMALE (SWIVEL) x MALE NPT

A101

p. 18

A81 p. 35

A103 p. 21

b

a

Polished

Brass

A

8 5/8”

Rough

Chrome

Polished

Chrome

B

13/16”

51/64”

1 15/64”

1 13/64”

SIZE (a x b)

1 1/2” x 1 1/2”

2 1/2” x 2”

2 1/2” x 2 1/2”

2 1/2” x 3”

10 57/64”

10 57/64”

10 31/32”

A

B

A102 p. 18

Used to connect fire hose standpipe or sprinkler system.

Standard equipment:

RELATED PRODUCTS

A81 p. 35 A103 p. 21

Forged brass with female (pin lug swivel) hose inlet x male NPT outlet.

Swivel furnished with pin or rocker lugs.

A101

p. 18
