42
b

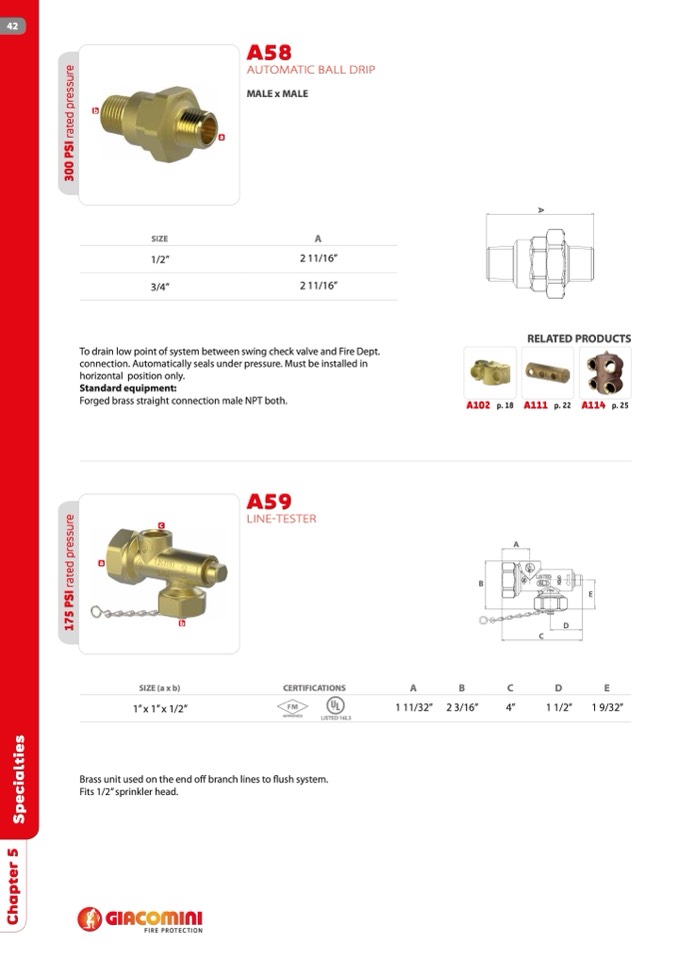

A58
AUTOMATIC BALL DRIP
MALE x MALE
A
2 11/16”
2 11/16”
A
SIZE
1/2”
3/4”
a
To drain low point of system between swing check valve and Fire Dept.
connection. Automatically seals under pressure. Must be installed in
horizontal position only.
Standard equipment:
Forged brass straight connection male NPT both.
A102
p. 18
A
C
4”
A111 p. 22
A114 p. 25
a
c
b
A59
LINE-TESTER
SIZE (a x b)
1”x 1”x 1/2”
CERTIFICATIONS
LISTED 16L3
E
Brass unit used on the end off branch lines to flush system.
Fits 1/2” sprinkler head.
A
B
1 11/32” 2 3/16”
D
C
D
1 1/2”
E
1 9/32”
B
RELATED PRODUCTS
C
h
a
p
t
e
r
5
S
p
e
c
i
a
l
t
i
e
s
1
7
5
P
S
I
r
a
t
e
d
p
r
e
s
s
u
r
e
3
0
0
P
S
I
r
a
t
e
d
p
r
e
s
s
u
r
e
