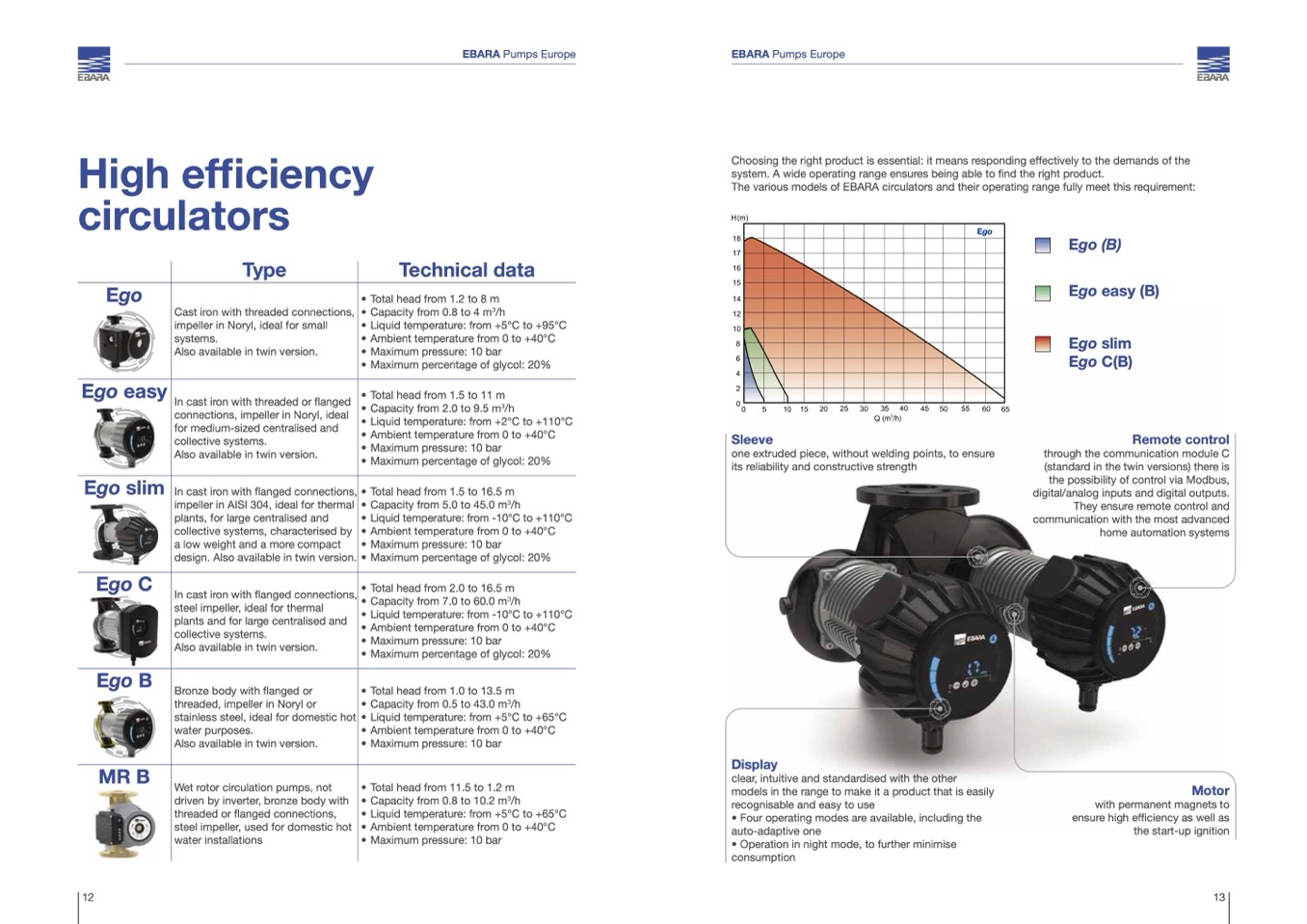

High efficiency

circulators

Type

Cast iron with threaded connections,

impeller in Noryl, ideal for small

systems.

Also available in twin version.

In cast iron with threaded or flanged

connections, impeller in Noryl, ideal

for medium-sized centralised and

collective systems.

Also available in twin version.

In cast iron with flanged connections,

impeller in AISI 304, ideal for thermal

plants, for large centralised and

collective systems, characterised by

a low weight and a more compact

design. Also available in twin version.

In cast iron with flanged connections,

steel impeller, ideal for thermal

plants and for large centralised and

collective systems.

Also available in twin version.

Bronze body with flanged or

threaded, impeller in Noryl or

stainless steel, ideal for domestic hot

water purposes.

Also available in twin version.

Wet rotor circulation pumps, not

driven by inverter, bronze body with

threaded or flanged connections,

steel impeller, used for domestic hot

water installations

Choosing the right product is essential: it means responding effectively to the demands of the

system. A wide operating range ensures being able to find the right product.

The various models of EBARA circulators and their operating range fully meet this requirement:

Ego

Ego

Ego easy

Ego slim

Ego C

Ego B

MR B

Technical data

• Total head from 1.2 to 8 m

• Capacity from 0.8 to 4 m

3

/h

• Liquid temperature: from +5°C to +95°C

• Ambient temperature from 0 to +40°C

• Maximum pressure: 10 bar

• Maximum percentage of glycol: 20%

• Total head from 1.5 to 11 m

• Capacity from 2.0 to 9.5 m

3

/h

• Liquid temperature: from +2°C to +110°C

• Ambient temperature from 0 to +40°C

• Maximum pressure: 10 bar

• Maximum percentage of glycol: 20%

• Total head from 1.5 to 16.5 m

• Capacity from 5.0 to 45.0 m

3

/h

• Liquid temperature: from -10°C to +110°C

• Ambient temperature from 0 to +40°C

• Maximum pressure: 10 bar

• Maximum percentage of glycol: 20%

• Total head from 2.0 to 16.5 m

• Capacity from 7.0 to 60.0 m

3

/h

• Liquid temperature: from -10°C to +110°C

• Ambient temperature from 0 to +40°C

• Maximum pressure: 10 bar

• Maximum percentage of glycol: 20%

• Total head from 1.0 to 13.5 m

• Capacity from 0.5 to 43.0 m

3

/h

• Liquid temperature: from +5°C to +65°C

• Ambient temperature from 0 to +40°C

• Maximum pressure: 10 bar

• Total head from 11.5 to 1.2 m

• Capacity from 0.8 to 10.2 m

3

/h

• Liquid temperature: from +5°C to +65°C

• Ambient temperature from 0 to +40°C

• Maximum pressure: 10 bar

Sleeve

one extruded piece, without welding points, to ensure

its reliability and constructive strength

Ego (B)

Ego easy (B)

Ego slim

Ego C(B)

Remote control

through the communication module C

(standard in the twin versions) there is

the possibility of control via Modbus,

digital/analog inputs and digital outputs.

They ensure remote control and

communication with the most advanced

home automation systems

Display

clear, intuitive and standardised with the other

models in the range to make it a product that is easily

recognisable and easy to use

• Four operating modes are available, including the

auto-adaptive one

• Operation in night mode, to further minimise

consumption

Motor

with permanent magnets to

ensure high efficiency as well as

the start-up ignition
