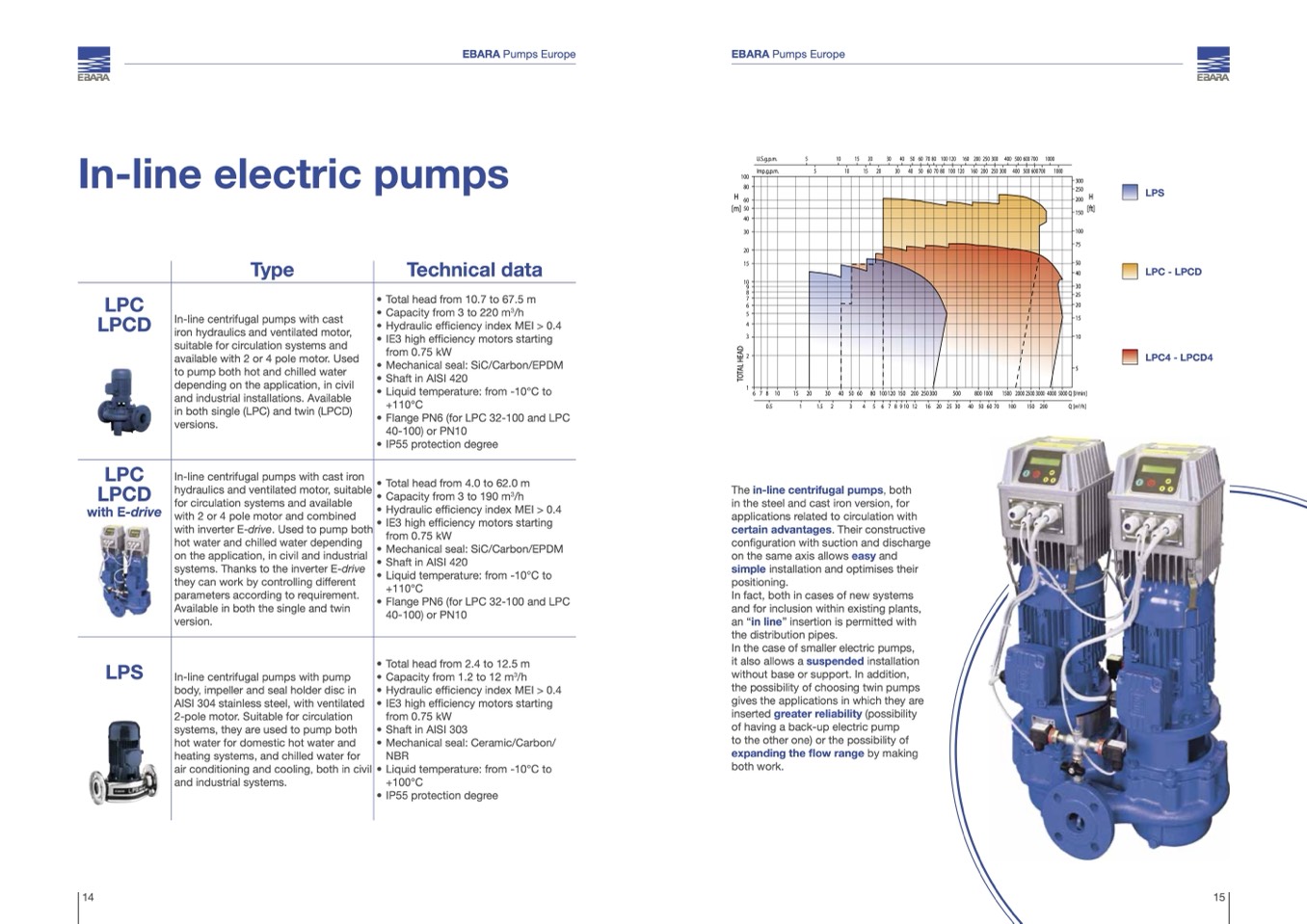

In-line electric pumps
U.S.g.p.m.
Imp.g.p.m.
5
10
15 20
15 20
30 40 50 60 70 80 100 120 160 200 250 300 400 500 600700 1000
30 40 50 60 70 80 100 120 160 200 250 300 400 500 600700 1000
LPC
LPCD
LPC
LPCD
with E-drive
LPS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
8
7
6
5
4
14
15
Type
Technical data
Total head from 10.7 to 67.5 m
3
Capacity from 3 to 220 m /h
Hydraulic efficiency index MEI > 0.4
IE3 high efficiency motors starting
from 0.75 kW
Mechanical seal: SiC/Carbon/EPDM
Shaft in AISI 420
Liquid temperature: from -10°C to
+110°C
Flange PN6 (for LPC 32-100 and LPC
40-100) or PN10
IP55 protection degree
Total head from 4.0 to 62.0 m
Capacity from 3 to 190 m
3
/h
Hydraulic efficiency index MEI > 0.4
IE3 high efficiency motors starting
from 0.75 kW
Mechanical seal: SiC/Carbon/EPDM
Shaft in AISI 420
Liquid temperature: from -10°C to
+110°C
Flange PN6 (for LPC 32-100 and LPC
40-100) or PN10
Total head from 2.4 to 12.5 m
Capacity from 1.2 to 12 m
3
/h
Hydraulic efficiency index MEI > 0.4
IE3 high efficiency motors starting
from 0.75 kW
Shaft in AISI 303
Mechanical seal: Ceramic/Carbon/
NBR
Liquid temperature: from -10°C to
+100°C
IP55 protection degree
10
9
In-line centrifugal pumps with pump
body, impeller and seal holder disc in
AISI 304 stainless steel, with ventilated
2-pole motor. Suitable for circulation
systems, they are used to pump both
hot water for domestic hot water and
heating systems, and chilled water for
air conditioning and cooling, both in civil
and industrial systems.
The in-line centrifugal pumps, both
in the steel and cast iron version, for
applications related to circulation with
certain advantages. Their constructive
configuration with suction and discharge
on the same axis allows easy and
simple installation and optimises their
positioning.
In fact, both in cases of new systems
and for inclusion within existing plants,
an “in line” insertion is permitted with
the distribution pipes.
In the case of smaller electric pumps,
it also allows a suspended installation
without base or support. In addition,
the possibility of choosing twin pumps
gives the applications in which they are
inserted greater reliability (possibility
of having a back-up electric pump
to the other one) or the possibility of
expanding the flow range by making
both work.
EBARA Pumps Europe
EBARA Pumps Europe
H
[m]
60
50
40
30
20
15
300
250
200
H
150
[ft]
100
75
50
40
30
25
20
15
10
5
2000 2500 3000 4000 5000 Q [l/min]
Q [m
3
/h]
LPS
LPC - LPCD
LPC4 - LPCD4
100
80
5
10
3
2
1
6
7
8
0.5
10
15
20
30
1.5 2
40
60
80
800 1000
1
50
3
4 5 6 7 8 9 10 12 16 20 25 30 40 50 60 70 100
150 200
100 120 150
200 250 300
500
1500
In-line centrifugal pumps with cast
iron hydraulics and ventilated motor,
suitable for circulation systems and
available with 2 or 4 pole motor. Used
to pump both hot and chilled water
depending on the application, in civil
and industrial installations. Available
in both single (LPC) and twin (LPCD)
versions.
In-line centrifugal pumps with cast iron
hydraulics and ventilated motor, suitable
for circulation systems and available
with 2 or 4 pole motor and combined
with inverter E-drive. Used to pump both
hot water and chilled water depending
on the application, in civil and industrial
systems. Thanks to the inverter E-drive
they can work by controlling different
parameters according to requirement.
Available in both the single and twin
version.
T
O
T
A
L
H
E
A
D
