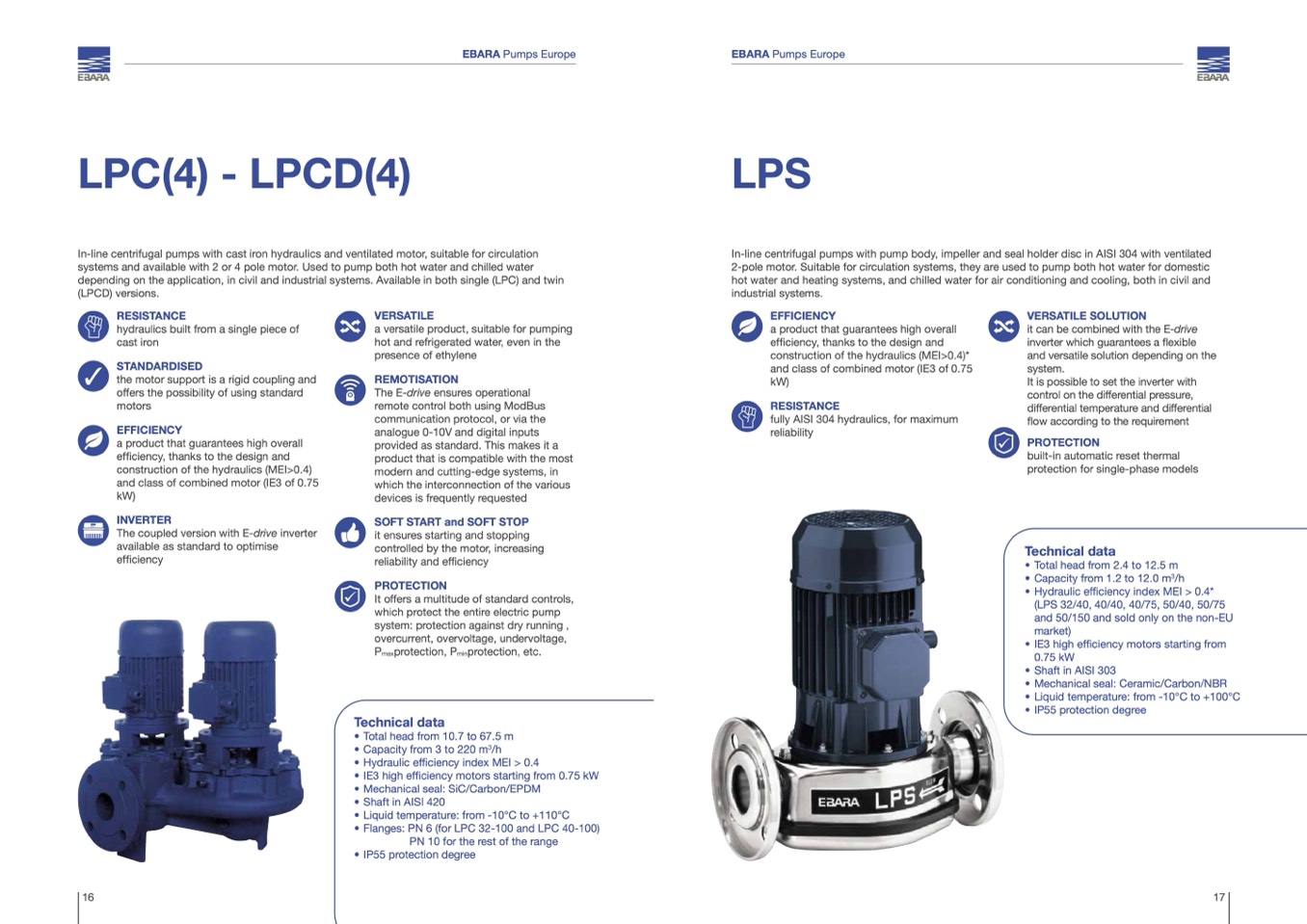

LPC(4) - LPCD(4)

In-line centrifugal pumps with cast iron hydraulics and ventilated motor, suitable for circulation

systems and available with 2 or 4 pole motor. Used to pump both hot water and chilled water

depending on the application, in civil and industrial systems. Available in both single (LPC) and twin

(LPCD) versions.

LPS

In-line centrifugal pumps with pump body, impeller and seal holder disc in AISI 304 with ventilated

2-pole motor. Suitable for circulation systems, they are used to pump both hot water for domestic

hot water and heating systems, and chilled water for air conditioning and cooling, both in civil and

industrial systems.

RESISTANCE

hydraulics built from a single piece of

cast iron

STANDARDISED

the motor support is a rigid coupling and

offers the possibility of using standard

motors

EFFICIENCY

a product that guarantees high overall

efficiency, thanks to the design and

construction of the hydraulics (MEI>0.4)

and class of combined motor (IE3 of 0.75

kW)

INVERTER

The coupled version with E-drive inverter

available as standard to optimise

efficiency

VERSATILE

a versatile product, suitable for pumping

hot and refrigerated water, even in the

presence of ethylene

REMOTISATION

The E-drive ensures operational

remote control both using ModBus

communication protocol, or via the

analogue 0-10V and digital inputs

provided as standard. This makes it a

product that is compatible with the most

modern and cutting-edge systems, in

which the interconnection of the various

devices is frequently requested

SOFT START and SOFT STOP

it ensures starting and stopping

controlled by the motor, increasing

reliability and efficiency

PROTECTION

It offers a multitude of standard controls,

which protect the entire electric pump

system: protection against dry running ,

overcurrent, overvoltage, undervoltage,

max

protection, P

min

protection, etc.

Technical data

• Total head from 10.7 to 67.5 m

• Capacity from 3 to 220 m

• Hydraulic efficiency index MEI > 0.4

• IE3 high efficiency motors starting from 0.75 kW

• Mechanical seal: SiC/Carbon/EPDM

• Shaft in AISI 420

• Liquid temperature: from -10°C to +110°C

• Flanges: PN 6 (for LPC 32-100 and LPC 40-100)

PN 10 for the rest of the range

• IP55 protection degree

EFFICIENCY

a product that guarantees high overall

efficiency, thanks to the design and

construction of the hydraulics (MEI>0.4)*

and class of combined motor (IE3 of 0.75

kW)

RESISTANCE

fully AISI 304 hydraulics, for maximum

reliability

VERSATILE SOLUTION

it can be combined with the E-drive

inverter which guarantees a flexible

and versatile solution depending on the

system.

It is possible to set the inverter with

control on the differential pressure,

differential temperature and differential

flow according to the requirement

PROTECTION

built-in automatic reset thermal

protection for single-phase models

Technical data

• Total head from 2.4 to 12.5 m

EBARA Pumps Europe

•

Capacity from 1.2 to 12.0 m

Hydraulic efficiency index MEI > 0.4*

(LPS 32/40, 40/40, 40/75, 50/40, 50/75

and 50/150 and sold only on the non-EU

market)

IE3 high efficiency motors starting from

0.75 kW

Shaft in AISI 303

Mechanical seal: Ceramic/Carbon/NBR

Liquid temperature: from -10°C to +100°C

IP55 protection degree
