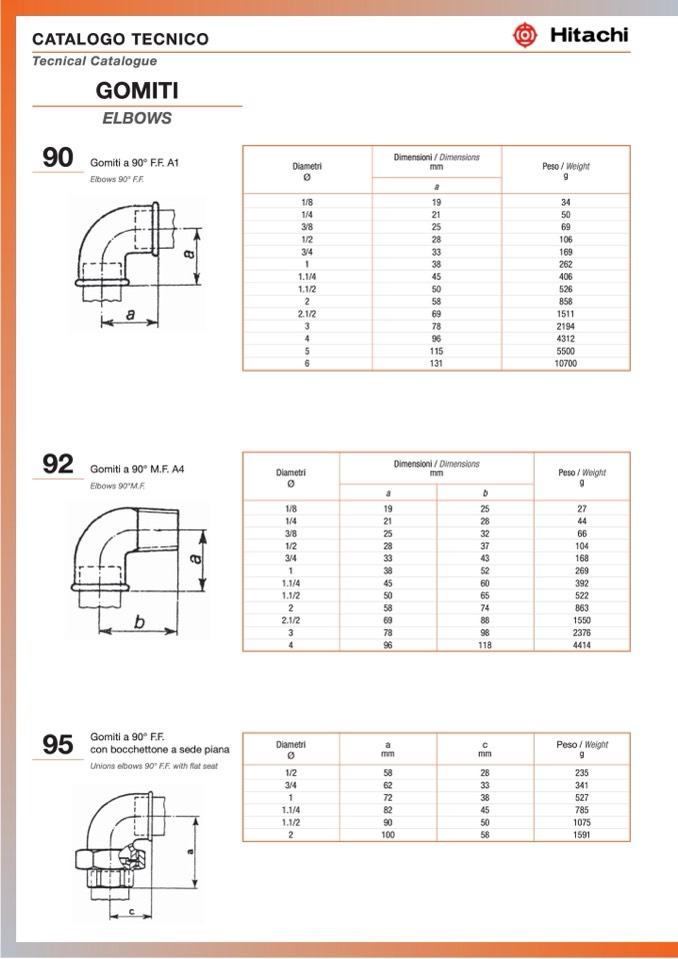

CATALOGO TECNICO

Tecnical Catalogue

GOMITI

ELBOWS

90

Gomiti a 90° F.F. A1

Elbows 90° F.F.

Diametri

Ø

Dimensioni / Dimensions

mm

Peso / Weight

g

a

1/8

19

34

1/4

21

50

3/8

25

69

1/2

28

106

3/4

33

169

1

38

262

1.1/4

45

406

1.1/2

50

526

2

58

858

2.1/2

69

1511

3

78

2194

4

96

4312

5

115

5500

6

131

10700

Diametri

Ø

Dimensioni / Dimensions

mm

Peso / Weight

g

a

b

1/8

19

25

27

1/4

21

28

44

3/8

25

32

66

1/2

28

37

104

3/4

33

43

168

1

38

52

269

1.1/4

45

60

392

1.1/2

50

65

522

2

58

74

863

2.1/2

69

88

1550

3

78

98

2376

4

96

118

4414

92

Gomiti a 90° M.F. A4

Elbows 90°M.F.

Diametri

Ø

a

mm

c

mm

Peso / Weight

g

1/2

58

28

235

3/4

62

33

341

1

72

38

527

1.1/4

82

45

785

1.1/2

90

50

1075

2

100

58

1591

95

Gomiti a 90° F.F.

con bocchettone a sede piana

Unions elbows 90° F.F. with flat seat
