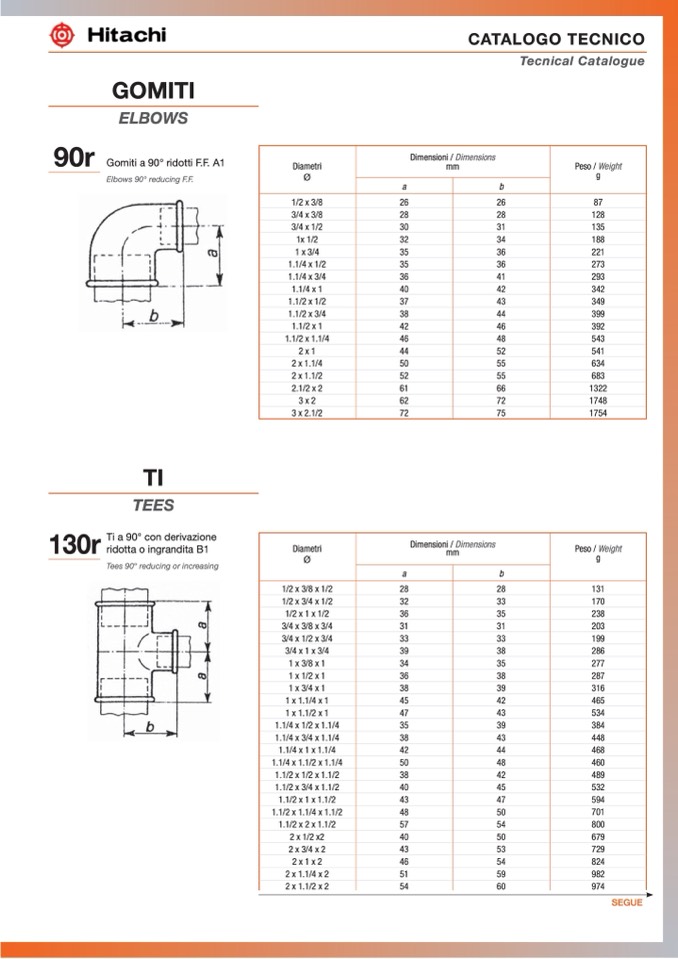

CATALOGO TECNICO

Tecnical Catalogue

GOMITI

ELBOWS

90r

Gomiti a 90° ridotti F.F. A1

Elbows 90° reducing F.F.

Diametri

Ø

Dimensioni / Dimensions

mm

Peso / Weight

g

a

b

1/2 x 3/8

26

26

87

3/4 x 3/8

28

28

128

3/4 x 1/2

30

31

135

1x 1/2

32

34

188

1 x 3/4

35

36

221

1.1/4 x 1/2

35

36

273

1.1/4 x 3/4

36

41

293

1.1/4 x 1

40

42

342

1.1/2 x 1/2

37

43

349

1.1/2 x 3/4

38

44

399

1.1/2 x 1

42

46

392

1.1/2 x 1.1/4

46

48

543

2 x1

44

52

541

2 x 1.1/4

50

55

634

2 x 1.1/2

52

55

683

2.1/2 x 2

61

66

1322

3 x2

62

72

1748

3 x 2.1/2

72

75

1754

TI

TEES

130r

Ti a 90° con derivazione

ridotta o ingrandita B1

Tees 90° reducing or increasing

Diametri

Ø

Dimensioni / Dimensions

mm

Peso / Weight

g

a

b

1/2 x 3/8 x 1/2

28

28

131

1/2 x 3/4 x 1/2

32

33

170

1/2 x 1 x 1/2

36

35

238

3/4 x 3/8 x 3/4

31

31

203

3/4 x 1/2 x 3/4

33

33

199

3/4 x 1 x 3/4

39

38

286

1 x 3/8 x 1

34

35

277

1 x 1/2 x 1

36

38

287

1 x 3/4 x 1

38

39

316

1 x 1.1/4 x 1

45

42

465

1 x 1.1/2 x 1

47

43

534

1.1/4 x 1/2 x 1.1/4

35

39

384

1.1/4 x 3/4 x 1.1/4

38

43

448

1.1/4 x 1 x 1.1/4

42

44

468

1.1/4 x 1.1/2 x 1.1/4

50

48

460

1.1/2 x 1/2 x 1.1/2

38

42

489

1.1/2 x 3/4 x 1.1/2

40

45

532

1.1/2 x 1 x 1.1/2

43

47

594

1.1/2 x 1.1/4 x 1.1/2

48

50

701

1.1/2 x 2 x 1.1/2

57

54

800

2 x 1/2 x2

40

50

679

2 x 3/4 x 2

43

53

729

2 x1 x2

46

54

824

2 x 1.1/4 x 2

51

59

982

2 x 1.1/2 x 2

54

60

974

SEGUE
