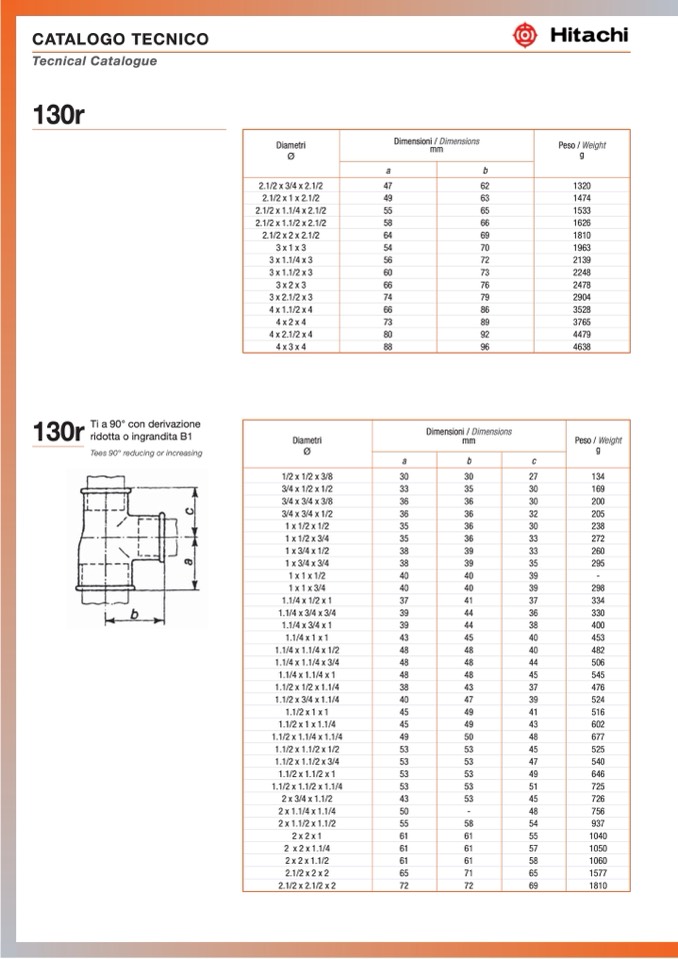

CATALOGO TECNICO

Tecnical Catalogue

130r

Diametri

Ø

Dimensioni / Dimensions

mm

Peso / Weight

g

a

b

2.1/2 x 3/4 x 2.1/2

47

62

1320

2.1/2 x 1 x 2.1/2

49

63

1474

2.1/2 x 1.1/4 x 2.1/2

55

65

1533

2.1/2 x 1.1/2 x 2.1/2

58

66

1626

2.1/2 x 2 x 2.1/2

64

69

1810

3 x1 x3

54

70

1963

3 x 1.1/4 x 3

56

72

2139

3 x 1.1/2 x 3

60

73

2248

3 x2 x3

66

76

2478

3 x 2.1/2 x 3

74

79

2904

4 x 1.1/2 x 4

66

86

3528

4 x2 x4

73

89

3765

4 x 2.1/2 x 4

80

92

4479

4 x3 x4

88

96

4638

Diametri

Ø

Dimensioni / Dimensions

mm

Peso / Weight

g

a

b

c

1/2 x 1/2 x 3/8

30

30

27

134

3/4 x 1/2 x 1/2

33

35

30

169

3/4 x 3/4 x 3/8

36

36

30

200

3/4 x 3/4 x 1/2

36

36

32

205

1 x 1/2 x 1/2

35

36

30

238

1 x 1/2 x 3/4

35

36

33

272

1 x 3/4 x 1/2

38

39

33

260

1 x 3/4 x 3/4

38

39

35

295

1 x 1 x 1/2

40

40

39

-

1 x 1 x 3/4

40

40

39

298

1.1/4 x 1/2 x 1

37

41

37

334

1.1/4 x 3/4 x 3/4

39

44

36

330

1.1/4 x 3/4 x 1

39

44

38

400

1.1/4 x 1 x 1

43

45

40

453

1.1/4 x 1.1/4 x 1/2

48

48

40

482

1.1/4 x 1.1/4 x 3/4

48

48

44

506

1.1/4 x 1.1/4 x 1

48

48

45

545

1.1/2 x 1/2 x 1.1/4

38

43

37

476

1.1/2 x 3/4 x 1.1/4

40

47

39

524

1.1/2 x 1 x 1

45

49

41

516

1.1/2 x 1 x 1.1/4

45

49

43

602

1.1/2 x 1.1/4 x 1.1/4

49

50

48

677

1.1/2 x 1.1/2 x 1/2

53

53

45

525

1.1/2 x 1.1/2 x 3/4

53

53

47

540

1.1/2 x 1.1/2 x 1

53

53

49

646

1.1/2 x 1.1/2 x 1.1/4

53

53

51

725

2 x 3/4 x 1.1/2

43

53

45

726

2 x 1.1/4 x 1.1/4

50

-

48

756

2 x 1.1/2 x 1.1/2

55

58

54

937

2 x2 x1

61

61

55

1040

2 x 2 x 1.1/4

61

61

57

1050

2 x 2 x 1.1/2

61

61

58

1060

2.1/2 x 2 x 2

65

71

65

1577

2.1/2 x 2.1/2 x 2

72

72

69

1810

130r

Ti a 90° con derivazione

ridotta o ingrandita B1

Tees 90° reducing or increasing
