IN LINE CENTRIFUGAL PUMPS

LPS

CONSTRUCTION

50Hz

Rev. P

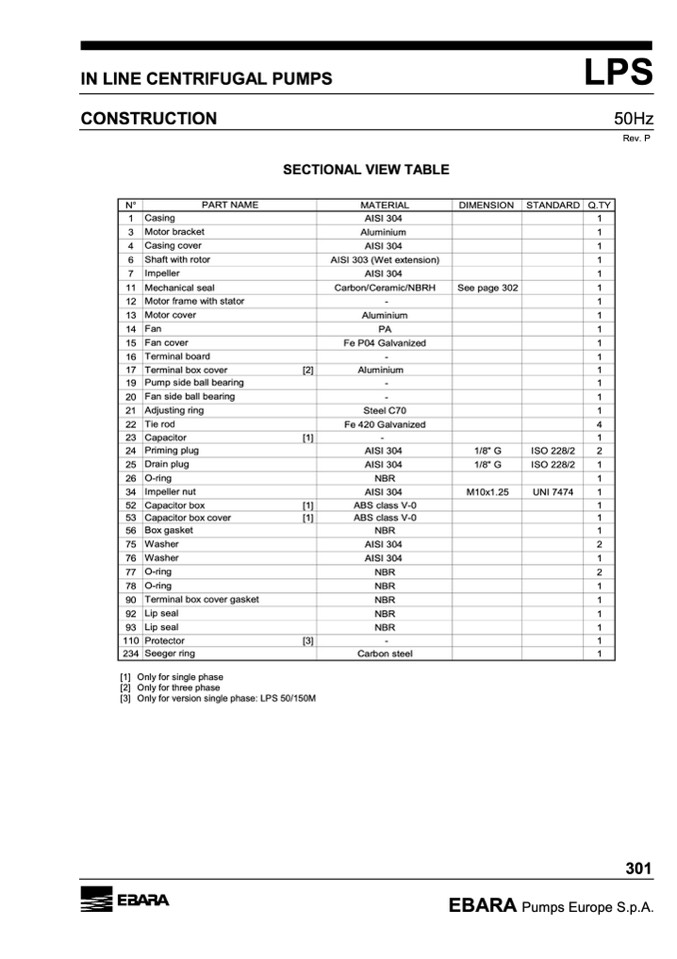

SECTIONAL VIEW TABLE

N°

PART NAME

MATERIAL

DIMENSION

STANDARD Q.TY

1

Casing

AISI 304

1

3

Motor bracket

Aluminium

1

4

Casing cover

AISI 304

1

6

Shaft with rotor

AISI 303 (Wet extension)

1

7

Impeller

AISI 304

1

11

Mechanical seal

Carbon/Ceramic/NBRH

See page 302

1

12

Motor frame with stator

-

1

13

Motor cover

Aluminium

1

14

Fan

PA

1

15

Fan cover

Fe P04 Galvanized

1

16

Terminal board

-

1

17

Terminal box cover

[2]

Aluminium

1

19

Pump side ball bearing

-

1

20

Fan side ball bearing

-

1

21

Adjusting ring

Steel C70

1

22

Tie rod

Fe 420 Galvanized

4

23

Capacitor

[1]

-

1

24

Priming plug

AISI 304

1/8" G

ISO 228/2

2

25

Drain plug

AISI 304

1/8" G

ISO 228/2

1

26

O-ring

NBR

1

34

Impeller nut

AISI 304

M10x1.25

UNI 7474

1

52

Capacitor box

[1]

ABS class V-0

1

53

Capacitor box cover

[1]

ABS class V-0

1

56

Box gasket

NBR

1

75

Washer

AISI 304

2

76

Washer

AISI 304

1

77

O-ring

NBR

2

78

O-ring

NBR

1

90

Terminal box cover gasket

NBR

1

92

Lip seal

NBR

1

93

Lip seal

NBR

1

110

Protector

[3]

-

1

234

Seeger ring

Carbon steel

1

[1] Only for single phase

[2] Only for three phase

[3] Only for version single phase: LPS 50/150M
