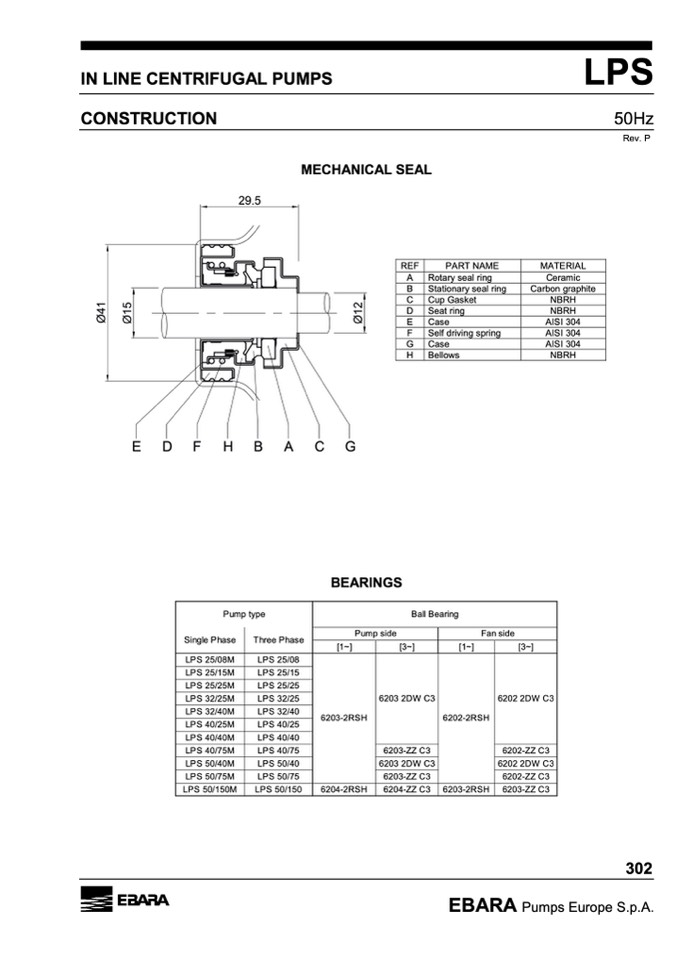

IN LINE CENTRIFUGAL PUMPS

CONSTRUCTION

MECHANICAL SEAL

REF

PART NAME

A

Rotary seal ring

B

Stationary seal ring

C

Cup Gasket

BEARINGS

LPS

50Hz

Rev. P

MATERIAL

Ceramic

Carbon graphite

NBRH

NBRH

AISI 304

AISI 304

AISI 304

D

Seat ring

E

Case

F

Self driving spring

G

Case

H

Bellows

NBRH

Pump type

Single Phase

Three Phase

Ball Bearing

Pump side

Fan side

[1~]

[3~]

[1~]

[3~]

LPS 25/08M

LPS 25/08

6203-2RSH

6203 2DW C3

6202-2RSH

6202 2DW C3

LPS 25/15M

LPS 25/15

LPS 25/25M

LPS 25/25

LPS 32/25M

LPS 32/25

LPS 32/40M

LPS 32/40

LPS 40/25M

LPS 40/25

LPS 40/40M

LPS 40/40

LPS 40/75M

LPS 40/75

6203-ZZ C3

6202-ZZ C3

LPS 50/40M

LPS 50/40

6203 2DW C3

6202 2DW C3

LPS 50/75M

LPS 50/75

6203-ZZ C3

6202-ZZ C3

LPS 50/150M

LPS 50/150

6204-2RSH

6204-ZZ C3

6203-2RSH

6203-ZZ C3

302
