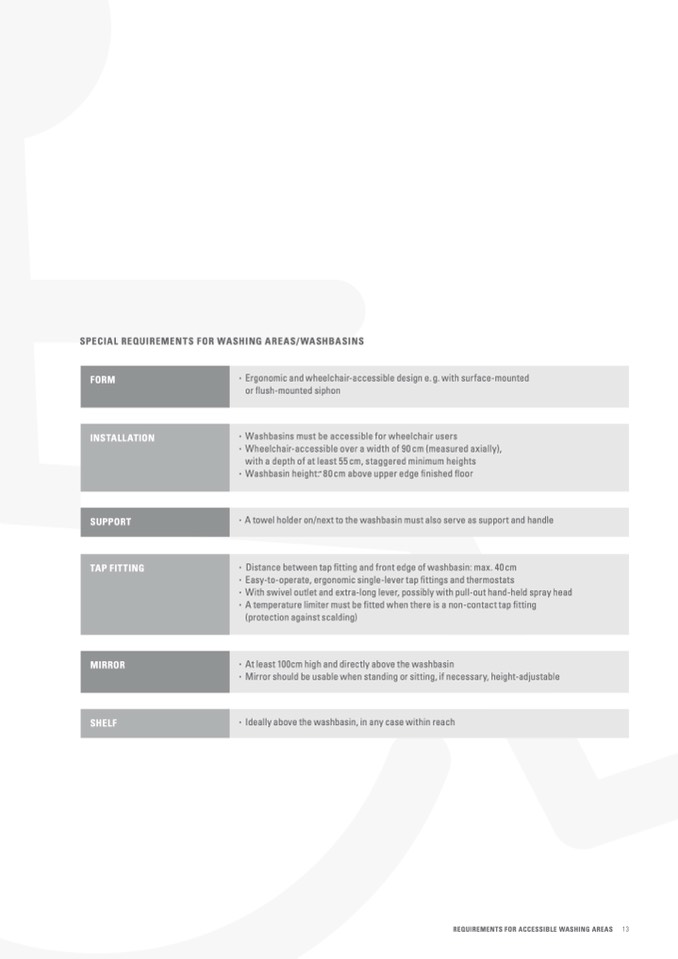

SPECIAL REQUIREMENTS FOR WASHING AREAS/WASHBASINS

FORM

Ergonomic and wheelchair-accessible design e.g. with surface-mounted

or flush-mounted siphon

INSTALLATION

Washbasins must be accessible for wheelchair users

Wheelchair-accessible over a width of 90cm (measured axially),

with a depth of at least 55 cm, staggered minimum heights

Washbasin height: 80cm above upper edge finished floor

SUPPORT

A towel holder on/next to the washbasin must also serve as support and handle

TAP FITTING

Distance between tap fitting and front edge of washbasin: max. 40cm

Easy-to-operate, ergonomic single-lever tap fittings and thermostats

With swivel outlet and extra-long lever, possibly with pull-out hand-held spray head

A temperature limiter must be fitted when there is a non-contact tap fitting

(protection against scalding)

MIRROR

At least 100cm high and directly above the washbasin

Mirror should be usable when standing or sitting, if necessary, height-adjustable

SHELF

Ideally above the washbasin, in any case within reach

REQUIREMENTS FOR ACCESSIBLE WASHING AREAS 13
