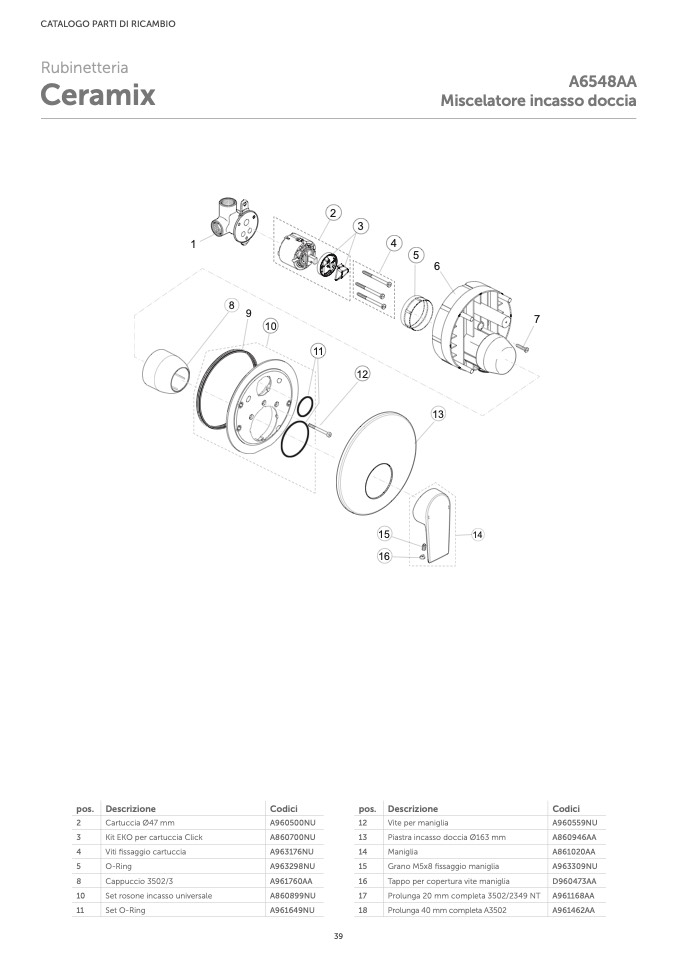

CATALOGO PARTI DI RICAMBIO

max.

+40

17

Pos. Description

1

Body ( shower only )

2

Cartridge Ø 47

3

ECO-Kit

4

Cylindrical screw

5

Fixation ring

+20

Single lever shower mixer built-in cpl.

G 1/2

Rub

c

i

h

n

ro

e

m

t

e

teria

Ceramix

A6548AA

A6548AA

Miscelatore incasso doccia

6

Plaster guard

7

Cylindrical screw M4x10

8

Cap + pos. 5

9

Seal ring

10

Escut. holder cpl.

11

O-ringset

12

Cylindrical screw M4x30

13

Escutcheon Ø 163 Shower

14

Lever cpl. with Logo ISI

15

Thread pin M5x10 DIN 915

16

Cap for handle

17

Extension kit 20mm

18

Extension kit 40mm

18

pos. Descrizione

2

Cartuccia Ø47 mm

3

Kit EKO per cartuccia Click

4

Viti fissaggio cartuccia

5

O-Ring

8

Cappuccio 3502/3

10

Set rosone incasso universale

11

Set O-Ring

Ceramix

Codici

A960500NU

A860700NU

A963176NU

A963298NU

A961760AA

A860899NU

A961649NU

pos. Descrizione

Codici

A960559NU

A860946AA

A861020AA

A963309NU

D960473AA

A961168AA

A961462AA

Part-

Number

A 960 500 NU

A 860 700 NU

A 963 176 NU

A 963 298 NU

A 961 760 AA

A 860 899 NU*

Qty.

1 pcs

1 Set

3 pcs

1 pcs

1 Set

1 Set

Pos. Description

Part-

Number

A 961 649 NU*

A 960 559 NU

A 860 946 AA

A 861 020 AA

A 963 309 NU

B 960 473 AA

A 961 168 AA

A 961 462 AA

2

3

1

4

5

6

13

8

9

10

7

G 1/2

G 1/2

11

12

Ø163

38 - 57

48

*Universal set (not all parts needed)

39

15

16

14

Qty.

1 Set

1 pcs

1 pcs

1 Set

1 pcs

1 pcs

1 Set

1 Set

12

Vite per maniglia

13

Piastra incasso doccia Ø163 mm

14

Maniglia

15

Grano M5x8 fissaggio maniglia

16

Tappo per copertura vite maniglia

17

Prolunga 20 mm completa 3502/2349 NT

18

Prolunga 40 mm completa A3502

51 - 70

49 - 68

C

e

r

a

m

i

x

8

2

3

7

9

,

5
