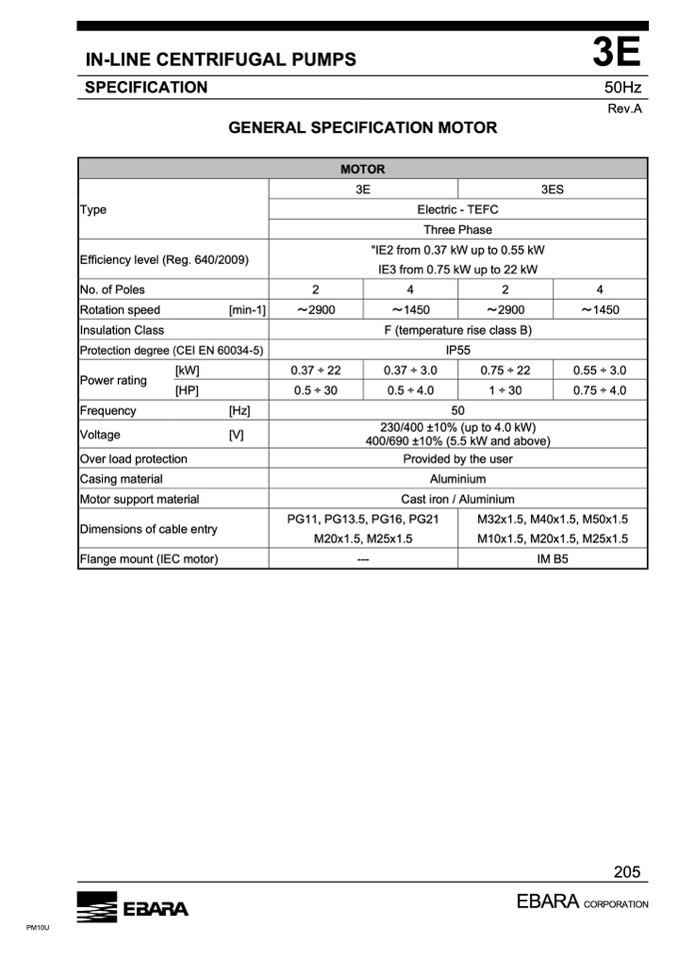

IN-LINE CENTRIFUGAL PUMPS

3E

50Hz

Rev.A

SPECIFICATION

Type

Efficiency level (Reg. 640/2009)

No. of Poles

GENERAL SPECIFICATION MOTOR

MOTOR

3E

3ES

Electric - TEFC

Three Phase

"IE2 from 0.37 kW up to 0.55 kW

IE3 from 0.75 kW up to 22 kW

4

2

~1450

~2900

F (temperature rise class B)

IP55

0.37 ÷ 3.0

0.75 ÷ 22

0.5 ÷ 4.0

1 ÷ 30

50

Rotation speed

Insulation Class

Protection degree (CEI EN 60034-5)

2

~2900

0.37 ÷ 22

0.5 ÷ 30

4

~1450

0.55 ÷ 3.0

0.75 ÷ 4.0

[min-1]

[kW]

[HP]

Frequency

Voltage

Over load protection

Casing material

Motor support material

Dimensions of cable entry

Flange mount (IEC motor)

Power rating

[Hz]

[V]

230/400 ±10% (up to 4.0 kW)

400/690 ±10% (5.5 kW and above)

Provided by the user

Aluminium

Cast iron / Aluminium

PG11, PG13.5, PG16, PG21

M20x1.5, M25x1.5

---

M32x1.5, M40x1.5, M50x1.5

M10x1.5, M20x1.5, M25x1.5

IM B5

EBARA

CORPORATION

205
