IN-LINE CENTRIFUGAL PUMPS

SPECIFICATIONS

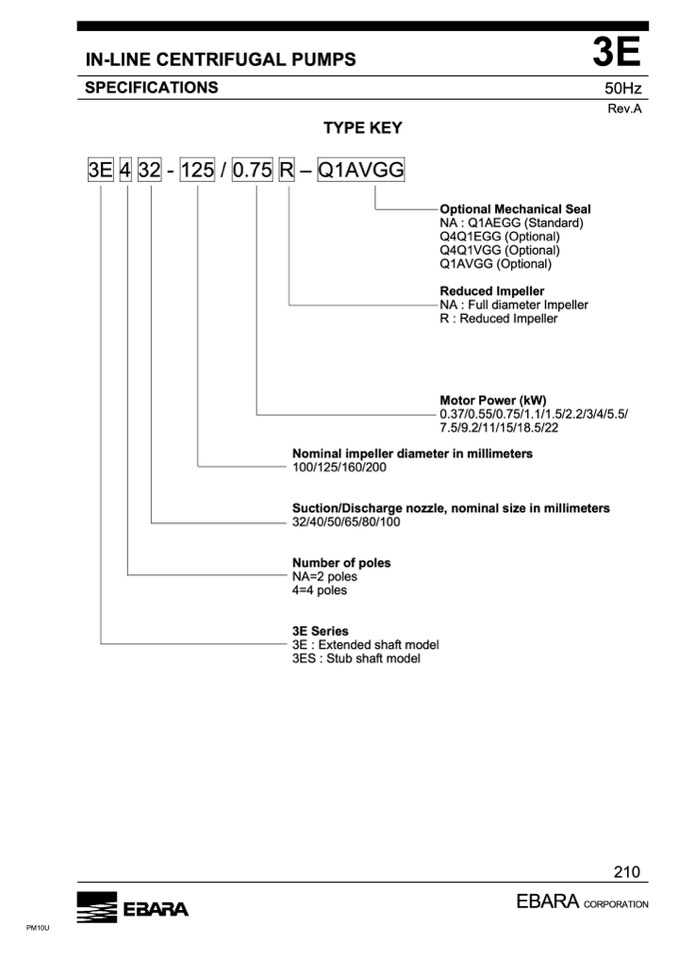

TYPE KEY

3E 4 32 - 125 / 0.75 R – Q1AVGG

3E

50Hz

Rev.A

Optional Mechanical Seal

NA : Q1AEGG (Standard)

Q4Q1EGG (Optional)

Q4Q1VGG (Optional)

Q1AVGG (Optional)

Reduced Impeller

NA : Full diameter Impeller

R : Reduced Impeller

Motor Power (kW)

0.37/0.55/0.75/1.1/1.5/2.2/3/4/5.5/

7.5/9.2/11/15/18.5/22

Nominal impeller diameter in millimeters

100/125/160/200

Suction/Discharge nozzle, nominal size in millimeters

32/40/50/65/80/100

Number of poles

NA=2 poles

4=4 poles

3E Series

3E : Extended shaft model

3ES : Stub shaft model
