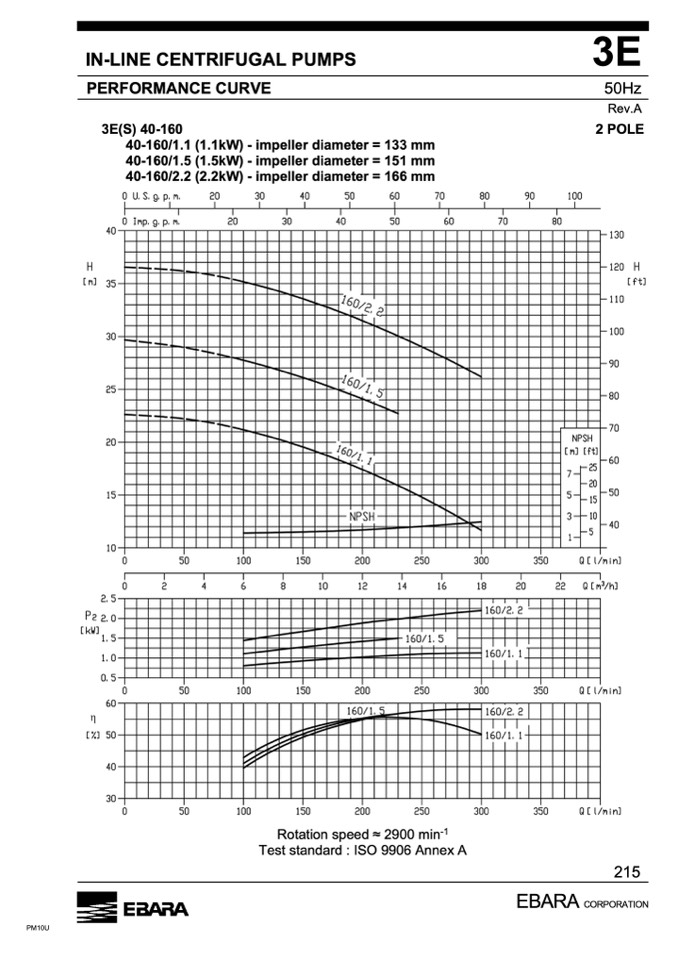

IN-LINE CENTRIFUGAL PUMPS

PERFORMANCE CURVE

3E(S) 40-160

40-160/1.1 (1.1kW) - impeller diameter = 133 mm

40-160/1.5 (1.5kW) - impeller diameter = 151 mm

40-160/2.2 (2.2kW) - impeller diameter = 166 mm

3E

50Hz

Rev.A

2 POLE

Rotation speed ≈ 2900 min

-1

Test standard : ISO 9906 Annex A

215

EBARA

CORPORATION

PM10U
