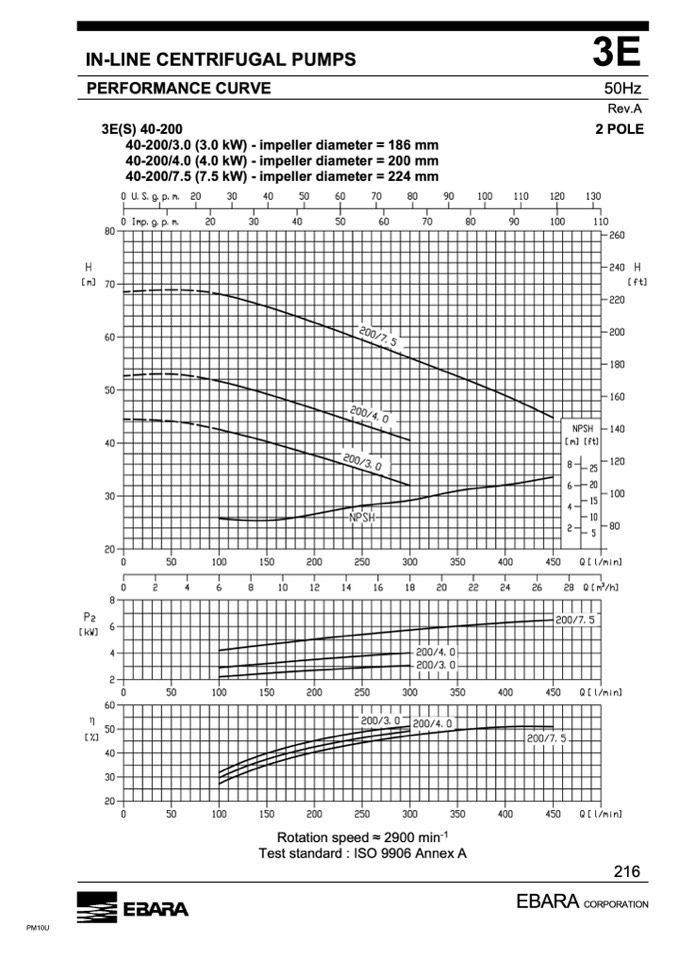

IN-LINE CENTRIFUGAL PUMPS

PERFORMANCE CURVE

3E(S) 40-200

40-200/3.0 (3.0 kW) - impeller diameter = 186 mm

40-200/4.0 (4.0 kW) - impeller diameter = 200 mm

40-200/7.5 (7.5 kW) - impeller diameter = 224 mm

3E

50Hz

Rev.A

2 POLE

Rotation speed ≈ 2900 min

-1

Test standard : ISO 9906 Annex A

216

EBARA

CORPORATION

PM10U
