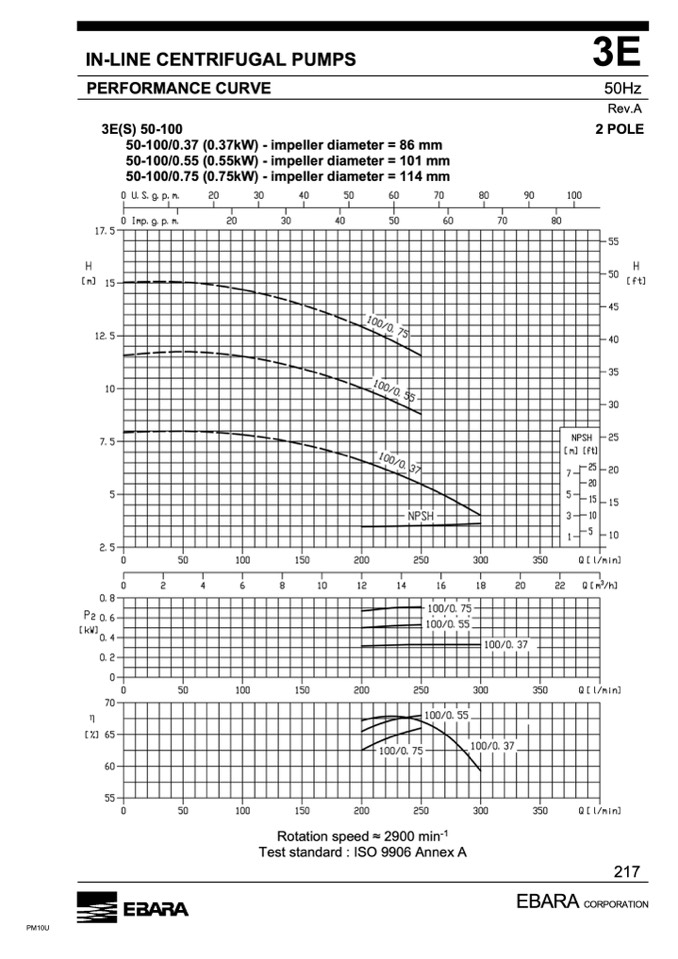

IN-LINE CENTRIFUGAL PUMPS

PERFORMANCE CURVE

3E(S) 50-100

50-100/0.37 (0.37kW) - impeller diameter = 86 mm

50-100/0.55 (0.55kW) - impeller diameter = 101 mm

50-100/0.75 (0.75kW) - impeller diameter = 114 mm

3E

50Hz

Rev.A

2 POLE

Rotation speed ≈ 2900 min

-1

Test standard : ISO 9906 Annex A

217

EBARA

CORPORATION

PM10U
