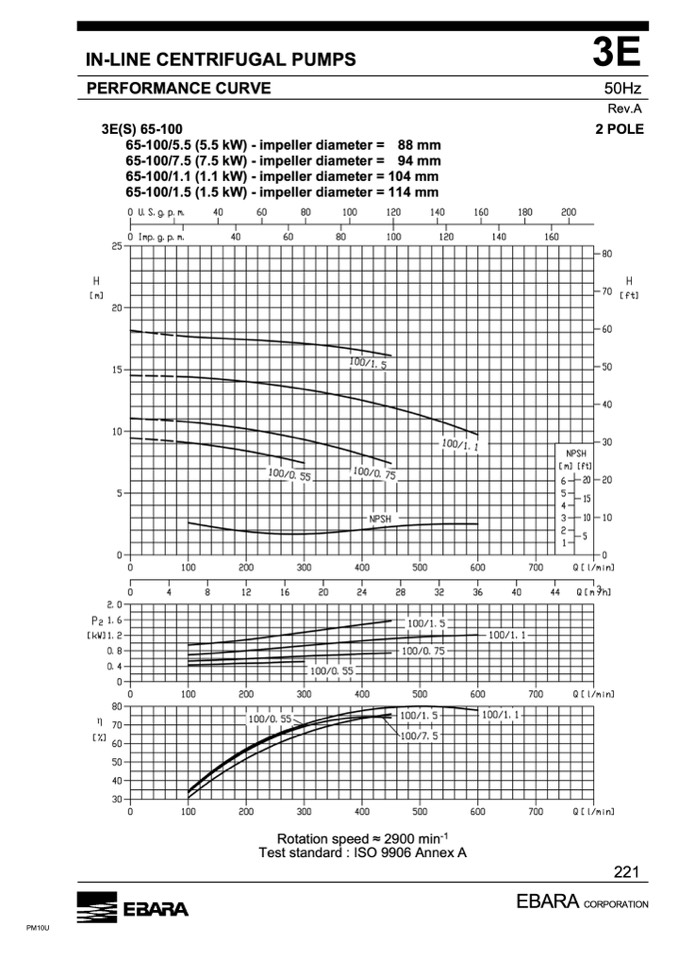

IN-LINE CENTRIFUGAL PUMPS

PERFORMANCE CURVE

3E(S) 65-100

65-100/5.5 (5.5 kW) - impeller diameter =

65-100/7.5 (7.5 kW) - impeller diameter =

65-100/1.1 (1.1 kW) - impeller diameter = 104 mm

65-100/1.5 (1.5 kW) - impeller diameter = 114 mm

3E

50Hz

Rev.A

2 POLE

88 mm

94 mm

Rotation speed ≈ 2900 min

-1

Test standard : ISO 9906 Annex A

221

EBARA

CORPORATION

PM10U
