IN-LINE CENTRIFUGAL PUMPS

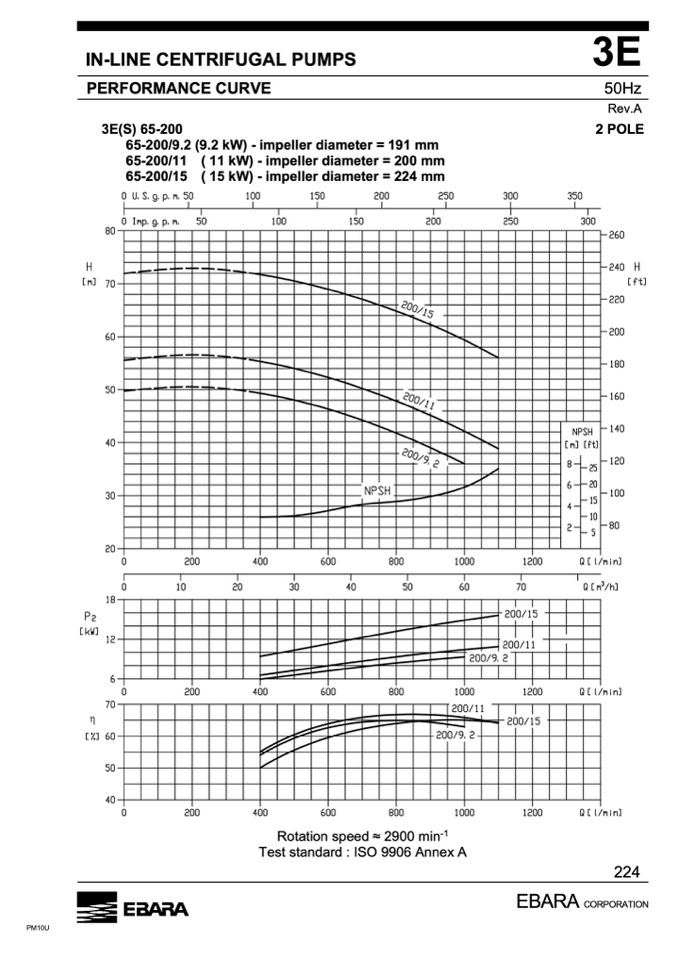

PERFORMANCE CURVE

3E(S) 65-200

65-200/9.2 (9.2 kW) - impeller diameter = 191 mm

3E

50Hz

Rev.A

2 POLE

65-200/11

65-200/15

( 11 kW) - impeller diameter = 200 mm

( 15 kW) - impeller diameter = 224 mm

Rotation speed ≈ 2900 min

-1

Test standard : ISO 9906 Annex A

224

EBARA

CORPORATION

PM10U
