IN-LINE CENTRIFUGAL PUMPS

3E

CONSTRUCTION

50Hz

Rev.A

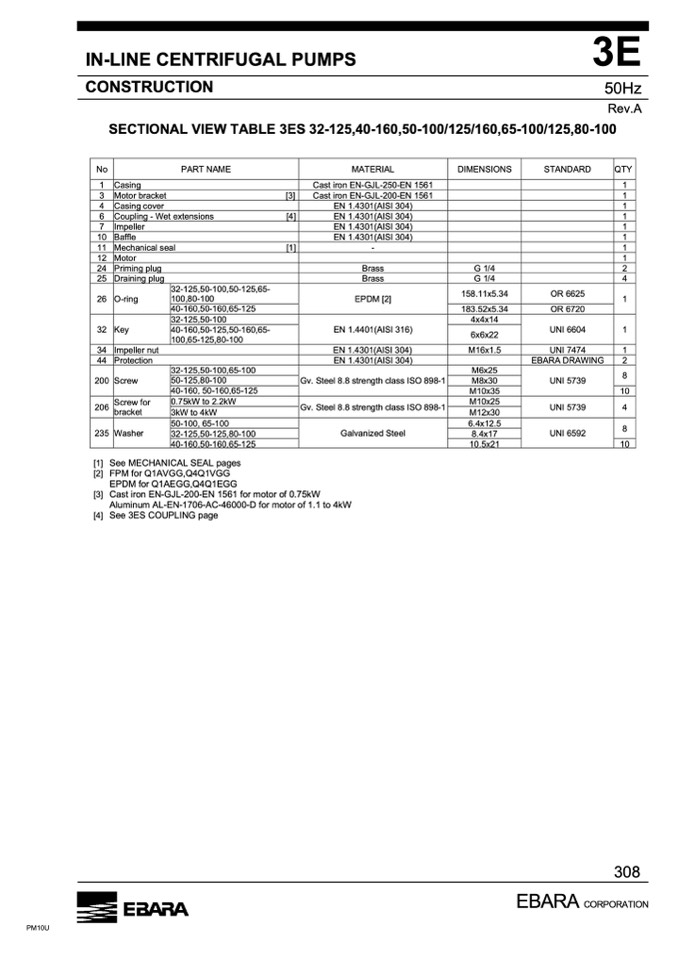

SECTIONAL VIEW TABLE 3ES 32-125,40-160,50-100/125/160,65-100/125,80-100

PART NAME

MATERIAL

DIMENSIONS

STANDARD

No

1 Casing

3 Motor bracket

4 Casing cover

6 Coupling - Wet extensions

7 Impeller

10 Baffle

11 Mechanical seal

12 Motor

24 Priming plug

25 Draining plug

26

32

34 Impeller nut

44 Protection

200

206

235

[1] See MECHANICAL SEAL pages

[2] FPM for Q1AVGG,Q4Q1VGG

[3]

[4]

[1]

Cast iron EN-GJL-250-EN

Cast iron EN-GJL-200-EN

EN 1.4301(AISI 304)

EN 1.4301(AISI 304)

EN 1.4301(AISI 304)

EN 1.4301(AISI 304)

-

Brass

Brass

EN 1.4301(AISI 304)

EN 1.4301(AISI 304)

1561

1561

QTY

1

1

1

1

1

1

1

1

2

4

1

1

G 1/4

G 1/4

183.52x5.34

M16x1.5

OR 6720

O-ring

32-125,50-100,50-125,65-

100,80-100

EPDM [2]

158.11x5.34

OR 6625

40-160,50-160,65-125

Key

32-125,50-100

4x4x14

EN 1.4401(AISI 316)

UNI 6604

40-160,50-125,50-160,65-

100,65-125,80-100

6x6x22

UNI 7474

1

EBARA DRAWING

2

8

10

4

8

10

Screw

32-125,50-100,65-100

Gv. Steel 8.8 strength class ISO 898-1

M6x25

UNI 5739

50-125,80-100

M8x30

40-160, 50-160,65-125

M10x35

Screw for

bracket

0.75kW to 2.2kW

Gv. Steel 8.8 strength class ISO 898-1

M10x25

UNI 5739

3kW to 4kW

M12x30

Washer

50-100, 65-100

Galvanized Steel

6.4x12.5

UNI 6592

32-125,50-125,80-100

8.4x17

40-160,50-160,65-125

10.5x21

EPDM for Q1AEGG,Q4Q1EGG

[3] Cast iron EN-GJL-200-EN 1561 for motor of 0.75kW

Aluminum AL-EN-1706-AC-46000-D for motor of 1.1 to 4kW

[4] See 3ES COUPLING page

308

EBARA

CORPORATION

PM10U
