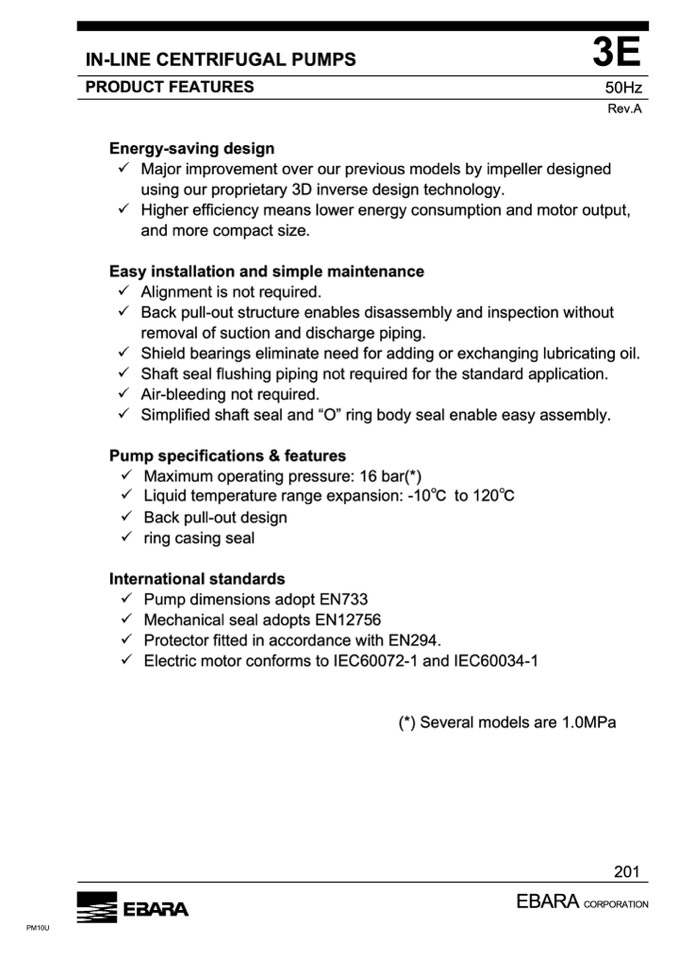

IN-LINE CENTRIFUGAL PUMPS

3E

PRODUCT FEATURES

50Hz

Rev.A

Energy-saving design

Major improvement over our previous models by impeller designed

using our proprietary 3D inverse design technology.

Higher efficiency means lower energy consumption and motor output,

and more compact size.

Easy installation and simple maintenance

Alignment is not required.

Back pull-out structure enables disassembly and inspection without

removal of suction and discharge piping.

Shield bearings eliminate need for adding or exchanging lubricating oil.

Shaft seal flushing piping not required for the standard application.

Air-bleeding not required.

Simplified shaft seal and “O” ring body seal enable easy assembly.

Pump specifications & features

Maximum operating pressure: 16 bar(*)

Liquid temperature range expansion: -10°C to 120°C

Back pull-out design

ring casing seal

International standards

Pump dimensions adopt EN733

Mechanical seal adopts EN12756

Protector fitted in accordance with EN294.

Electric motor conforms to IEC60072-1 and IEC60034-1

(*) Several models are 1.0MPa
