IN-LINE CENTRIFUGAL PUMPS

3E

CONSTRUCTION

50Hz

Rev.A

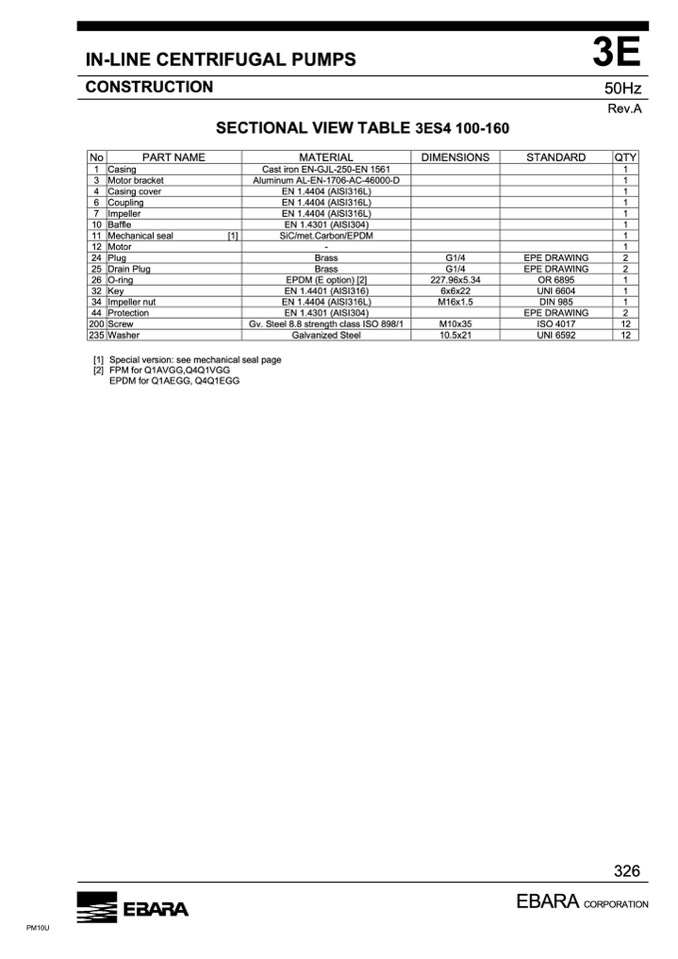

SECTIONAL VIEW TABLE 3ES4 100-160

PART NAME

MATERIAL

DIMENSIONS

STANDARD

Casing

Cast iron EN-GJL-250-EN 1561

Motor bracket

Aluminum AL-EN-1706-AC-46000-D

Casing cover

EN 1.4404 (AISI316L)

Coupling

EN 1.4404 (AISI316L)

Impeller

EN 1.4404 (AISI316L)

Baffle

EN 1.4301 (AISI304)

Mechanical seal

[1]

SiC/met.Carbon/EPDM

Motor

-

Plug

Brass

G1/4

EPE DRAWING

Drain Plug

Brass

G1/4

EPE DRAWING

O-ring

EPDM (E option) [2]

227.96x5.34

OR 6895

Key

EN 1.4401 (AISI316)

6x6x22

UNI 6604

Impeller nut

EN 1.4404 (AISI316L)

M16x1.5

DIN 985

Protection

EN 1.4301 (AISI304)

EPE DRAWING

Screw

Gv. Steel 8.8 strength class ISO 898/1

M10x35

ISO 4017

Washer

Galvanized Steel

10.5x21

UNI 6592

No

QTY

1

1

3

1

4

1

6

1

7

1

10

1

11

1

12

1

24

2

25

2

26

1

32

1

34

1

44

2

200

12

235

12

[1] Specialversion:seemechanicalsealpage

[2] FPMforQ1AVGG,Q4Q1VGG

EPDM for Q1AEGG, Q4Q1EGG

326
