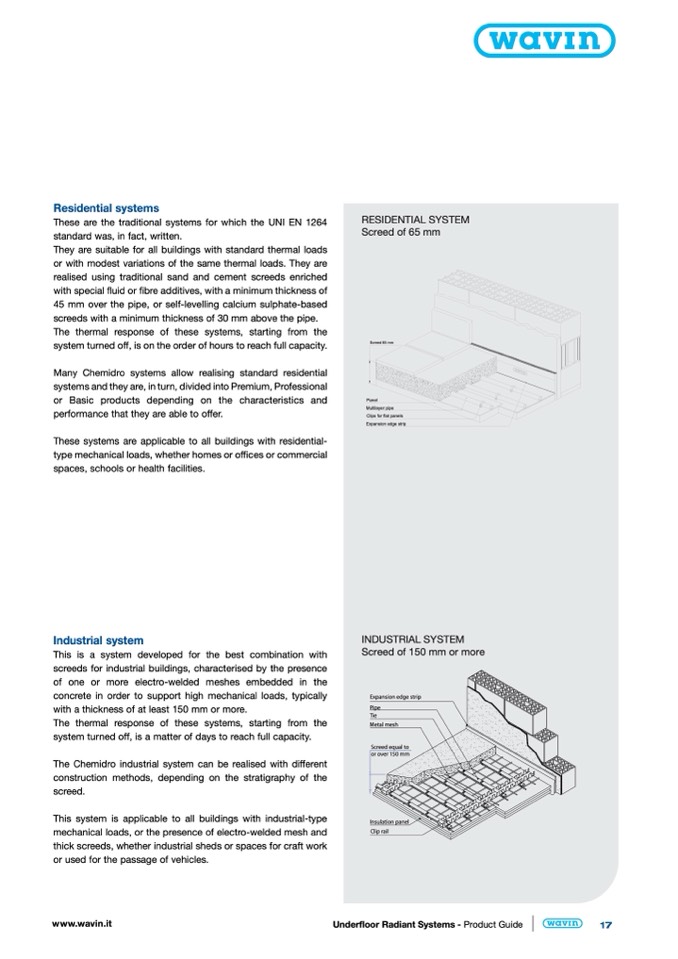

Residential systems

These are the traditional systems for which the UNI EN 1264

standard was, in fact, written.

They are suitable for all buildings with standard thermal loads

or with modest variations of the same thermal loads. They are

realised using traditional sand and cement screeds enriched

with special fluid or

fibre additives, with a minimum thickness of

45 mm over the pipe, or self-levelling calcium sulphate-based

screeds with a minimum thickness of 30 mm above the pipe.

The thermal response of these systems, starting from the

system turned off, is on the order of hours to reach full capacity.

Many Chemidro systems allow realising standard residential

systems and they are, in turn, divided into Premium, Professional

or Basic products depending on the characteristics and

performance that they are able to offer.

These systems are applicable to all buildings with residential-

type mechanical loads, whether homes or offices or commercial

spaces, schools or health facilities.

RESIDENTIAL SYSTEM

Screed of 65 mm

Screed 65 mm

Panel

Multilayer pipe

Clips for flat panels

Expansion edge strip

SISTEMA RESIDENZIALE

Industrial system

This is a system developed for the best combination with

screeds for industrial buildings, characterised by the presence

of one or more electro-welded meshes embedded in the

concrete in order to support high mechanical loads, typically

with a thickness of at least 150 mm or more.

The thermal response of these systems, starting from the

system turned off, is a matter of days to reach full capacity.

The Chemidro industrial system can be realised with different

construction methods, depending on the stratigraphy of the

screed.

This system is applicable to all buildings with industrial-type

mechanical loads, or the presence of electro-welded mesh and

thick screeds, whether industrial sheds or spaces for craft work

or used for the passage of vehicles.

INDUSTRIAL SYSTEM

Screed of 150 mm or more

Expansion edge strip

Pipe

Tie

Metal mesh

Screed equal to

or over 150 mm

Insulation panel

Clip rail
