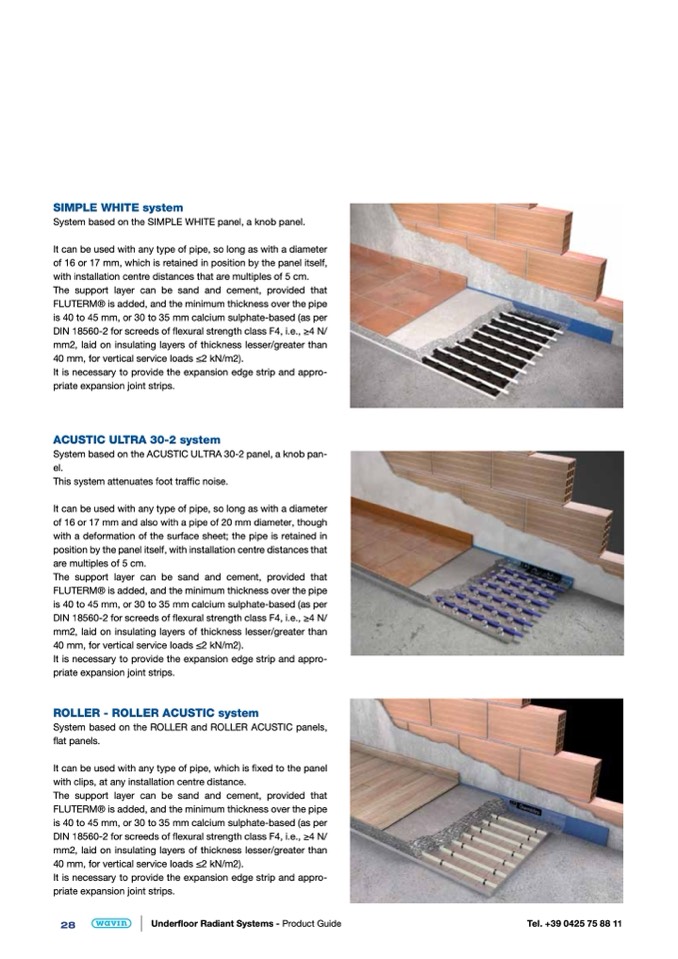

SIMPLE WHITE system

System based on the SIMPLE WHITE panel, a knob panel.

It can be used with any type of pipe, so long as with a diameter

of 16 or 17 mm, which is retained in position by the panel itself,

with installation centre distances that are multiples of 5 cm.

The support layer can be sand and cement, provided that

FLUTERM® is added, and the minimum thickness over the pipe

is 40 to 45 mm, or 30 to 35 mm calcium sulphate-based (as per

DIN 18560-2 for screeds of flexural strength class F4, i.e., ≥4 N/

mm2, laid on insulating layers of thickness lesser/greater than

40 mm, for vertical service loads ≤2 kN/m2).

It is necessary to provide the expansion edge strip and appro-

priate expansion joint strips.

ACUSTIC ULTRA 30-2 system

System based on the ACUSTIC ULTRA 30-2 panel, a knob pan-

el.

This system attenuates foot traffic noise.

It can be used with any type of pipe, so long as with a diameter

of 16 or 17 mm and also with a pipe of 20 mm diameter, though

with a deformation of the surface sheet; the pipe is retained in

position by the panel itself, with installation centre distances that

are multiples of 5 cm.

The support layer can be sand and cement, provided that

FLUTERM® is added, and the minimum thickness over the pipe

is 40 to 45 mm, or 30 to 35 mm calcium sulphate-based (as per

DIN 18560-2 for screeds of flexural strength class F4, i.e., ≥4 N/

mm2, laid on insulating layers of thickness lesser/greater than

40 mm, for vertical service loads ≤2 kN/m2).

It is necessary to provide the expansion edge strip and appro-

priate expansion joint strips.

ROLLER - ROLLER ACUSTIC system

System based on the ROLLER and ROLLER ACUSTIC panels,

flat panels.

It can be used with any type of pipe, which is

fixed to the panel

with clips, at any installation centre distance.

The support layer can be sand and cement, provided that

FLUTERM® is added, and the minimum thickness over the pipe

is 40 to 45 mm, or 30 to 35 mm calcium sulphate-based (as per

DIN 18560-2 for screeds of flexural strength class F4, i.e., ≥4 N/

mm2, laid on insulating layers of thickness lesser/greater than

40 mm, for vertical service loads ≤2 kN/m2).

It is necessary to provide the expansion edge strip and appro-

priate expansion joint strips.
