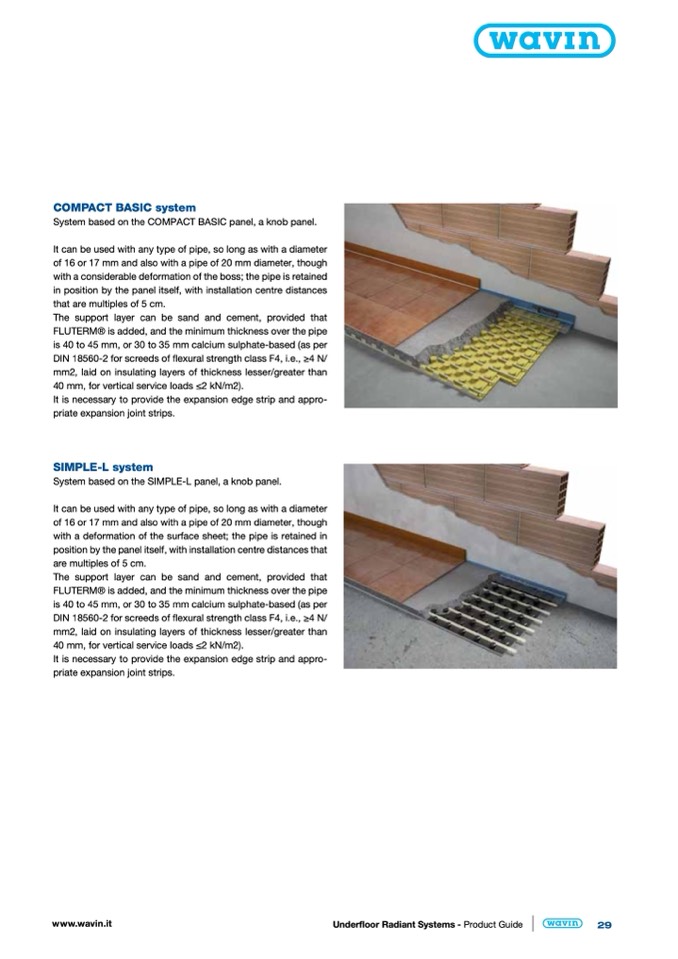

COMPACT BASIC system

System based on the COMPACT BASIC panel, a knob panel.

It can be used with any type of pipe, so long as with a diameter

of 16 or 17 mm and also with a pipe of 20 mm diameter, though

with a considerable deformation of the boss; the pipe is retained

in position by the panel itself, with installation centre distances

that are multiples of 5 cm.

The support layer can be sand and cement, provided that

FLUTERM® is added, and the minimum thickness over the pipe

is 40 to 45 mm, or 30 to 35 mm calcium sulphate-based (as per

DIN 18560-2 for screeds of flexural strength class F4, i.e., ≥4 N/

mm2, laid on insulating layers of thickness lesser/greater than

40 mm, for vertical service loads ≤2 kN/m2).

It is necessary to provide the expansion edge strip and appro-

priate expansion joint strips.

SIMPLE-L system

System based on the SIMPLE-L panel, a knob panel.

It can be used with any type of pipe, so long as with a diameter

of 16 or 17 mm and also with a pipe of 20 mm diameter, though

with a deformation of the surface sheet; the pipe is retained in

position by the panel itself, with installation centre distances that

are multiples of 5 cm.

The support layer can be sand and cement, provided that

FLUTERM® is added, and the minimum thickness over the pipe

is 40 to 45 mm, or 30 to 35 mm calcium sulphate-based (as per

DIN 18560-2 for screeds of flexural strength class F4, i.e., ≥4 N/

mm2, laid on insulating layers of thickness lesser/greater than

40 mm, for vertical service loads ≤2 kN/m2).

It is necessary to provide the expansion edge strip and appro-

priate expansion joint strips.
