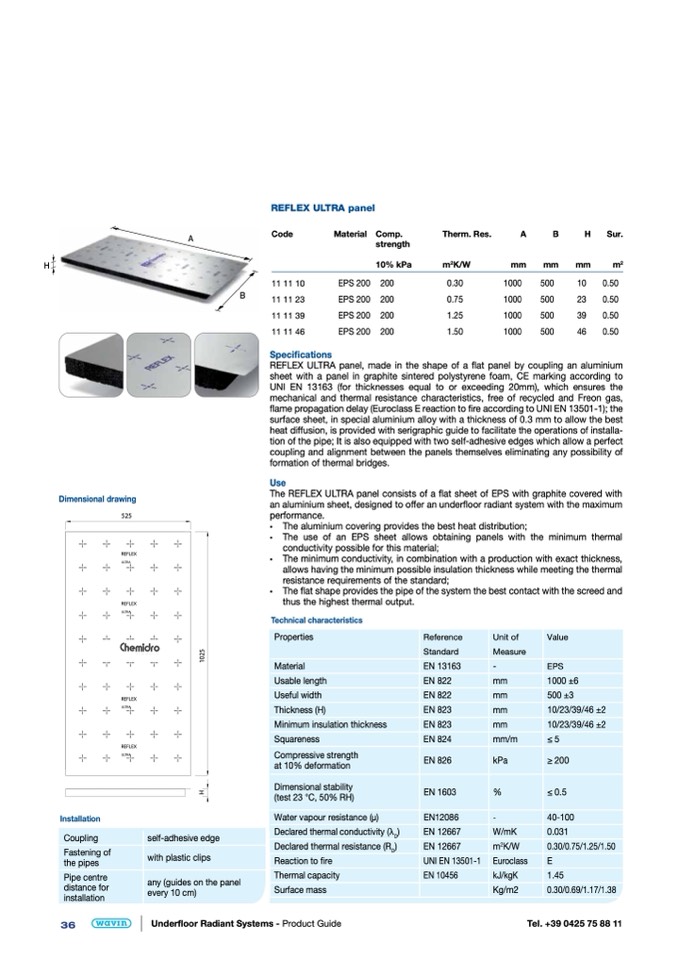

Dimensional drawing
Specifications
REFLEX ULTRA panel, made in the shape of a flat panel by coupling an aluminium
sheet with a panel in graphite sintered polystyrene foam, CE marking according to
UNI EN 13163 (for thicknesses equal to or exceeding 20mm), which ensures the
mechanical and thermal resistance characteristics, free of recycled and Freon gas,
flame propagation delay (Euroclass E reaction to fire according to UNI EN 13501-1); the
surface sheet, in special aluminium alloy with a thickness of 0.3 mm to allow the best
heat diffusion, is provided with serigraphic guide to facilitate the operations of installa-
tion of the pipe; It is also equipped with two self-adhesive edges which allow a perfect
coupling and alignment between the panels themselves eliminating any possibility of
formation of thermal bridges.
Use
The REFLEX ULTRA panel consists of a flat sheet of EPS with graphite covered with
an aluminium sheet, designed to offer an underfloor radiant system with the maximum
performance.
• The aluminium covering provides the best heat distribution;
• The use of an EPS sheet allows obtaining panels with the minimum thermal
conductivity possible for this material;
• The minimum conductivity, in combination with a production with exact thickness,
allows having the minimum possible insulation thickness while meeting the thermal
resistance requirements of the standard;
• The flat shape provides the pipe of the system the best contact with the screed and
thus the highest thermal output.
Installation
Coupling
Fastening of
the pipes
Pipe centre
distance for
installation
self-adhesive edge
with plastic clips
any (guides on the panel
every 10 cm)
36
Underfloor Radiant Systems - Product Guide
Tel. +39 0425 75 88 11
525
REFLEX
ULTRA
REFLEX
ULTRA
REFLEX
ULTRA
REFLEX
ULTRA
5
2
0
1
H
Technical characteristics
Properties
Material
Usable length
Useful width
Thickness (H)
Minimum insulation thickness
Squareness
Compressive strength
at 10% deformation
Dimensional stability
(test 23 °C, 50% RH)
Water vapour resistance (μ)
Declared thermal conductivity (λ
D
)
Declared thermal resistance (R
D
)
Reaction to fire
Thermal capacity
Surface mass
Reference
Unit of
Standard
Measure
EN 13163
-
EN 822
mm
EN 822
mm
EN 823
mm
EN 823
mm
EN 824
mm/m
EN 826
kPa
EN 1603
%
EN12086
-
EN 12667
W/mK
EN 12667
m
2
K/W
UNI EN 13501-1 Euroclass
EN 10456
kJ/kgK
Kg/m2
Value
EPS
1000 ±6
500 ±3
10/23/39/46 ±2
10/23/39/46 ±2
≤5
≥ 200
≤ 0.5
40-100
0.031
0.30/0.75/1.25/1.50
E
1.45
0.30/0.69/1.17/1.38
REFLEX ULTRA panel
Code
11 11 10
11 11 23
11 11 39
11 11 46
Material
Comp.
Therm. Res.
A
B
H
Sur.
strength
10% kPa
m
2
K/W
mm
mm
mm
m
2
EPS 200
200
0.30
1000
500
10
0.50
EPS 200
200
0.75
1000
500
23
0.50
EPS 200
200
1.25
1000
500
39
0.50
EPS 200
200
1.50
1000
500
46
0.50
