Dimensional drawing
SIMPLE WHITE panel, made of a rigid plastic sheet with bosses coupled with a back
panel in sintered polystyrene foam, CE marking according to UNI EN 13163, which
ensures the mechanical and thermal resistance characteristics, free of recycled and
Freon gas, flame propagation delay (Euroclass E, reaction to fire according to UNI
EN 13501-1); suitable for installation centre distances that are multiple of 50 mm;
equipped with suitably dimensioned perimeter bosses to allow a rigid connection by
overlapping the panel’s sides, ensuring a perfect coupling and alignment between the
panels themselves and eliminating any possibility of formation of thermal bridges.
Use
SIMPLE WHITE panel consists of a moulded EPS sheet with bosses and covered with
a rigid plastic protective sheet and is designed to offer high simplicity of installation of
an underfloor radiant system.
• The rigid sheet covering allows a high degree of compressive strength;
• The bosses, shaped with appropriate finger grip clips, allow an easy insertion of the
pipe of the system while ensuring it is held in position.
Installation
Coupling
Fastening of the
pipes
Pipe centre
distance for
installation
interlocking with the first
row of perimeter bosses
on knobs, with interlocking
DN16 and 17
50 mm
EN 13163
EN 822
EN 822
EN 823
EN 823
EN 824
EN 1604
EN 12086
EN 12667
EN 12667
UNI EN 13501-1
EN 10456
-
EPS
mm
1400 ±7
mm
800 ±5
mm
32/42/50/60 ±2
mm
10/20/28/38 ±2
mm/m
≤5
kPa
≥ 150/200*
%
≤1
-
30 - 70
W/mK
0.034
m
2
K/W
0.40/0.75/0.95/1.25
Euroclass
E
kJ/kgK
1.45
Kg/m
2
0.36/0.61/0.81/1.06
40
Underfloor Radiant Systems - Product Guide
Tel. +39 0425 75 88 11

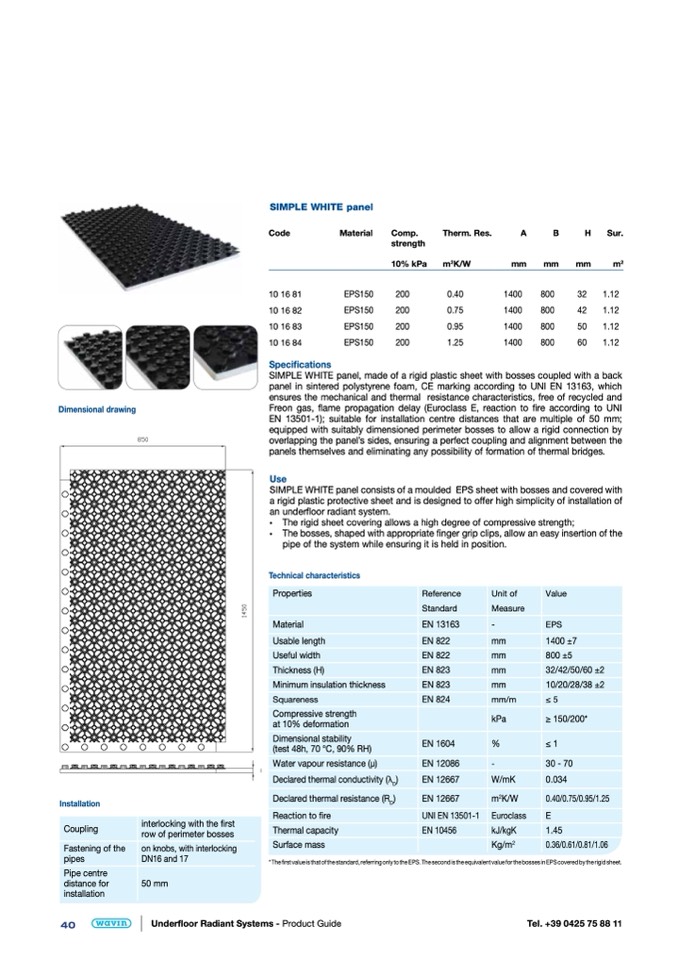

SIMPLE WHITE panel
Code
Material
Comp.
Therm. Res.
A
B
H
Sur.
strength
10% kPa
m
2
K/W
mm
mm
mm
m
2
200
0.40
1400
800
32
1.12
200
0.75
1400
800
42
1.12
200
0.95
1400
800
50
1.12
200
1.25
1400
800
60
1.12
10 16 81
10 16 82
10 16 83
10 16 84
Specifications
EPS150
EPS150
EPS150
EPS150
Technical characteristics
Properties
Material
Usable length
Useful width
Thickness (H)
Minimum insulation thickness
Squareness
Compressive strength
at 10% deformation
Dimensional stability
(test 48h, 70 °C, 90% RH)
Water vapour resistance (μ)
Declared thermal conductivity (λ
D
)
Declared thermal resistance (R
D
)
Reaction to fire
Thermal capacity
Surface mass
Unit of
Value
Reference
Standard
Measure
* The first value is that of the standard, referring only to the EPS. The second is the equivalent value for the bosses in EPS covered by the rigid sheet.
