Dimensional drawing
Roller Acustic Panel, produced in rolls consisting of flat panels in moulded-sintered
expanded polystyrene, dynamic stiffness class SD15/20/30 (dynamic stiffness not
exceeding 15/20/20 MN/m3) depending on thickness and compressibility CP2, CE
marking according to UNI EN 13163, which ensures the mechanical, thermal and
acoustic characteristics, free from recycled and Freon gas, flame propagation delay
(Euroclass E reaction to fire according to UNI EN 13501-1); with a non-woven surface
sheet provided with a self-adhesive edge coupled as a single, uniform and compact
structure, marked with pipe guide lines to facilitate pipe laying. Only the rigid plastic
sheet with bosses is also available.
Use
The ROLLER ACUSTIC panel consists of a series of flat sheets in EPS covered with a
plastic protective film and rolled, and is designed to offer a practical solution for the
installation of an underfloor radiant system in spaces with large surfaces.
•
The rolled form allows to have a panel with large surface area in a small space,
easy to transport and simple to install by unrolling the panel itself;
•
The use of low-density EPS-T allows obtaining panels with foot traffic-noise
attenuation properties;
•
The flat shape provides the pipe of the system the best contact with the screed
and thus the highest thermal output.
Technical characteristics
Properties
Material
Usable length
Working width
Thickness (H)
Minimum insulation thickness
Squareness
Dynamic stiffness
Compressibility
Dimensional stability
(test 23 °C, 50% RH)
Water vapour resistance (μ)
Declared thermal conductivity (λ
D
)
Declared thermal resistance (R
D
)
Reaction to fire
Thermal capacity
Surface mass
Installation
Coupling
Fastening of the
pipes
Pipe laying form
self-adhesive edge
with plastic clips
any (guides on the panel
every 5 cm)
EN 13163
EN 822
EN 822
EN 823
EN 823
EN 824
EN 12431
EN 1604
EN 12086
EN 12667
EN 12667
UNI EN 13501-1
EN 10456
-
EPS-T
mm
10000 ±60
mm
1000 ±6
mm
20/30/40 ±2
mm
20/30/40 ±2
mm/m
≤2
≤ 15 (SD15)/
≤ 20 (SD20)/
≤ 30 (SD30)/
mm
≤ 2 (CP2)
%
≤ 0.2
-
20-40
W/mK
0.040
m
2
K/W
0.50/0.75/1.00
Euroclass
E
kJ/kgK
1.45
Kg/m
2
0.20/0.30/0.40
www.wavin.it
Underfloor Radiant Systems - Product Guide
45
1050

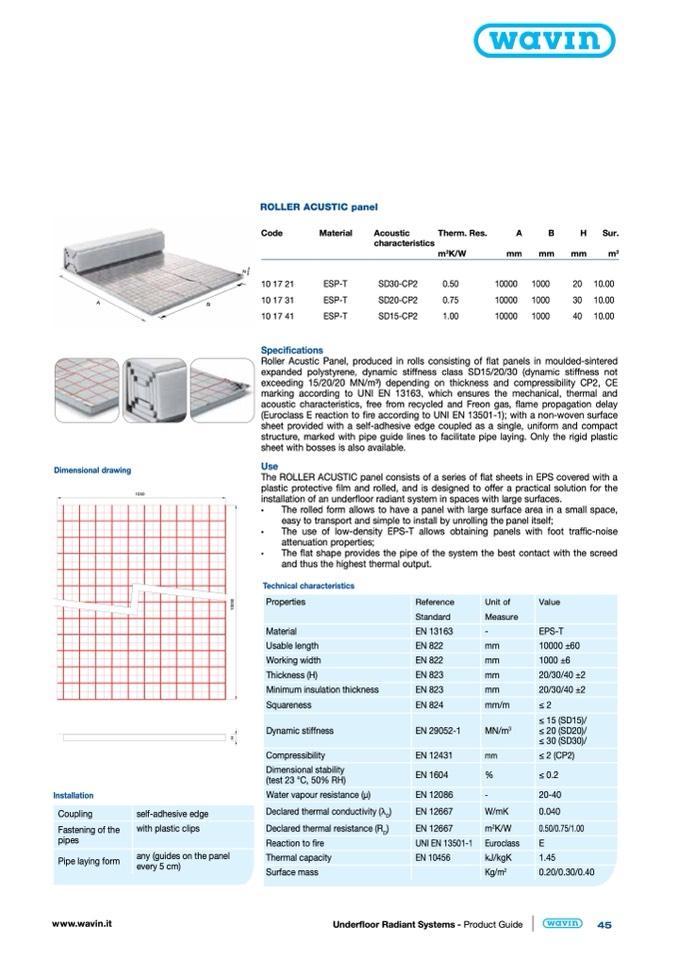

ROLLER ACUSTIC panel
Code
10 17 21
10 17 31
10 17 41
Material
ESP-T
ESP-T
ESP-T
Acoustic
characteristics
SD30-CP2
SD20-CP2
SD15-CP2
Therm. Res.
m
2
K/W
0.50
0.75
1.00
A
B
mm
mm
10000
1000
10000
1000
10000
1000
H
Sur.
mm
m
2
20 10.00
30 10.00
40 10.00
Specifications
Reference
Standard
Measure
Unit of
Value
1
0
0
5
0
EN 29052-1
MN/m
3
H
