Dimensional drawing
730
Specifications
COMPACT BASIC panel, with knob surface bosses produced by moulding sintered
expanded polystyrene, CE marking according to UNI EN 13163, which ensures the
mechanical and thermal resistance characteristics, free of recycled and Freon gas,
flame propagation delay (Euroclass E reaction to fire according to UNI EN 13501-1);
superficially provided with a polystyrene film, hot bonded into a single uniform, com-
pact structure; the bosses have octagonal shape, elongated and flared to facilitate
insertion and clamping of the pipe, allowed centre distances for pipe installation are
multiple of 50 mm; perimeter slots with complementary interlocking allow a perfect
coupling and alignment between the panels themselves eliminating any possibility of
formation of thermal bridges.
Use
The COMPACT BASIC panel consists of moulded EPS with knob bosses and covered
with a plastic protective film and is designed to offer an efficient, streamlined solution to
modern construction relating to the installation of underfloor radiant systems.
•
The octagonal-shaped bosses, widened and flared, makes it easier the insertion
of the pipe of the system.
46
Underfloor Radiant Systems - Product Guide
Tel. +39 0425 75 88 11
0
3
2
1
EN 13163
EN 822
EN 822
EN 823
EN 823
EN 824
EN 826
EN 1604
EN 12086
EN 12667
EN 12667
UNI EN 13501-1
EN 10456
-
EPS
mm
1200 ±7
mm
700 ±4
mm
35/45/60 ±2
mm
11/21/36 ±2
mm/m
≤2
kPa
≥ 200
%
≤1
-
40-100
W/mK
0.035
m
2
K/W
0.55 /0.75/1.25
Euroclass
E
kJ/kgK
1.45
Kg/m
2
0.60/0.81/1.32
H

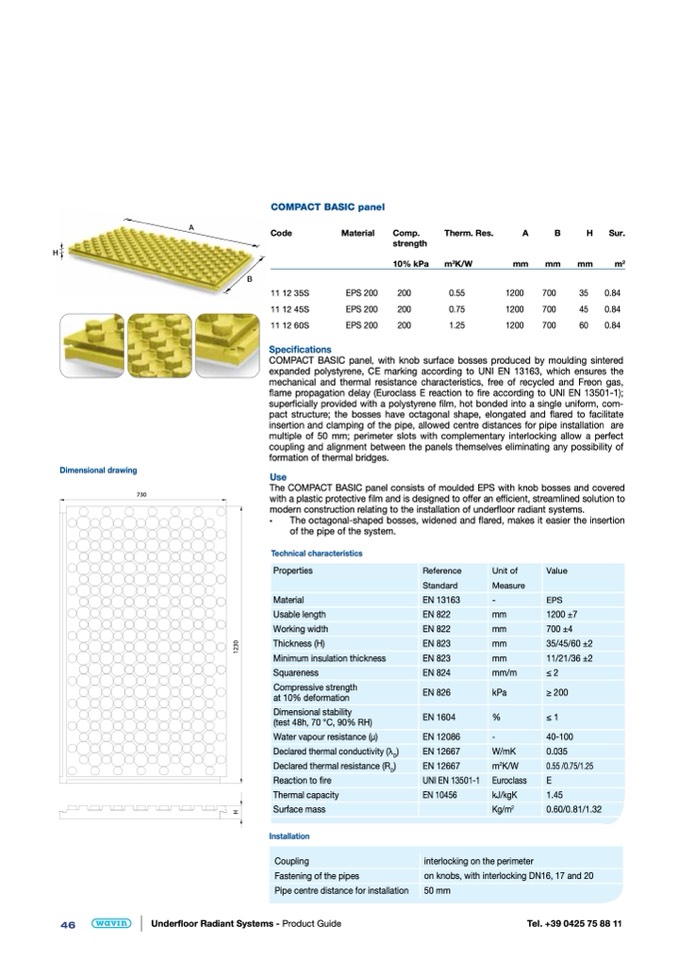

COMPACT BASIC panel
Code
11 12 35S
11 12 45S
11 12 60S
Material
EPS 200
EPS 200
EPS 200
Comp.
strength
10% kPa
200
200
200
Therm. Res.
A
B
m
2
K/W
mm
mm
0.55
1200
700
0.75
1200
700
1.25
1200
700
H
Sur.
mm
m
2
35
0.84
45
0.84
60
0.84
Technical characteristics
Properties
Material
Usable length
Working width
Thickness (H)
Minimum insulation thickness
Squareness
Compressive strength
at 10% deformation
Dimensional stability
(test 48h, 70 °C, 90% RH)
Water vapour resistance (μ)
Declared thermal conductivity (λ
D
)
Declared thermal resistance (R )
D
Reaction to fire
Thermal capacity
Surface mass
Installation
Coupling
Fastening of the pipes
Pipe centre distance for installation
Reference
Unit of
Value
Standard
Measure
interlocking on the perimeter
on knobs, with interlocking DN16, 17 and 20
50 mm
