5
LAYERS

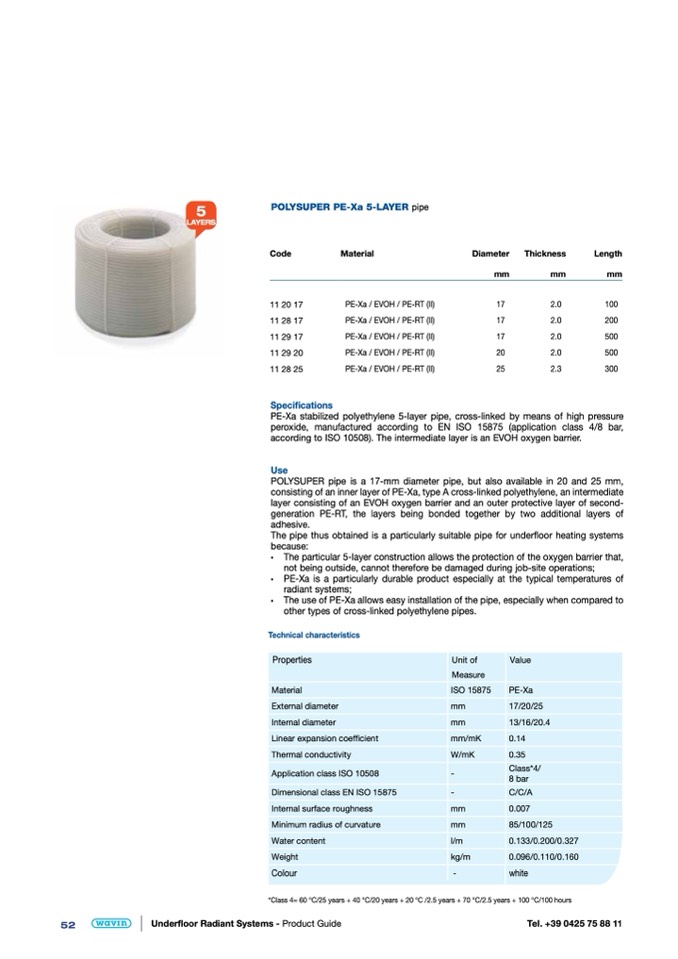

POLYSUPER PE-Xa 5-LAYER pipe
Code
Material
11 20 17
11 28 17
11 29 17
11 29 20
11 28 25
Specifications
PE-Xa / EVOH / PE-RT (II)
PE-Xa / EVOH / PE-RT (II)
PE-Xa / EVOH / PE-RT (II)
PE-Xa / EVOH / PE-RT (II)
PE-Xa / EVOH / PE-RT (II)
Diameter
Thickness
Length
mm
mm
mm
17
2.0
100
17
2.0
200
17
2.0
500
20
2.0
500
25
2.3
300
PE-Xa stabilized polyethylene 5-layer pipe, cross-linked by means of high pressure
peroxide, manufactured according to EN ISO 15875 (application class 4/8 bar,
according to ISO 10508). The intermediate layer is an EVOH oxygen barrier.
Use
POLYSUPER pipe is a 17-mm diameter pipe, but also available in 20 and 25 mm,
consisting of an inner layer of PE-Xa, type A cross-linked polyethylene, an intermediate
layer consisting of an EVOH oxygen barrier and an outer protective layer of second-
generation PE-RT, the layers being bonded together by two additional layers of
adhesive.
The pipe thus obtained is a particularly suitable pipe for underfloor heating systems
because:
• The particular 5-layer construction allows the protection of the oxygen barrier that,
not being outside, cannot therefore be damaged during job-site operations;
• PE-Xa is a particularly durable product especially at the typical temperatures of
radiant systems;
• The use of PE-Xa allows easy installation of the pipe, especially when compared to
other types of cross-linked polyethylene pipes.
Technical characteristics
Properties
Material
External diameter
Internal diameter
Linear expansion coefficient
Thermal conductivity
Application class ISO 10508
Dimensional class EN ISO 15875
Internal surface roughness
Minimum radius of curvature
Water content
Weight
Unit of
Measure
ISO 15875
mm
mm
mm/mK
W/mK
-
-
mm
mm
l/m
kg/m
Value
PE-Xa
17/20/25
13/16/20.4
0.14
0.35
Class*4/
8 bar
C/C/A
0.007
85/100/125
0.133/0.200/0.327
0.096/0.110/0.160
52
Underfloor Radiant Systems - Product Guide
Tel. +39 0425 75 88 11
Colour
*Class 4= 60 °C/25 years + 40 °C/20 years + 20 °C /2.5 years + 70 °C/2.5 years + 100 °C/100 hours
-
white
